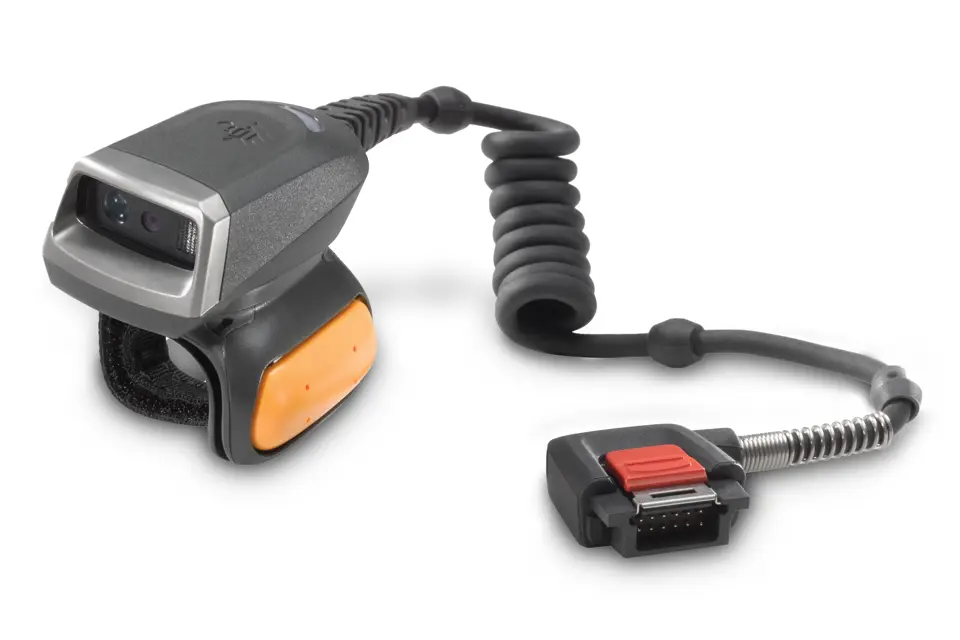

Zebra Ring Scanner RS5000

The cleaning frequency is up to the customer's discretion due to the varied environments in which the mobile devices are used. They may be cleaned as frequently as required. However, when used in dirty environments, it may be advisable to periodically clean the scanner exit window to ensure optimum scanning performance.

Clean the housing regularly to ensure scanner functionality and longevity.

1. Use the alcohol wipes to wipe the housing.

2. Repeat the process as needed.

RS5000 Finger Strap Assembly Replacement

Press down on the finger strap assembly release tab

Slide the finger assembly out of the trigger assembly

Align the new finger strap assembly with the slot in the trigger assembly

Push the finger strap assembly into the trigger assembly until the release tab clicks into place

RS5000x Finger Strap Replacement

Remove the strap from the buckle

Use a small flathead screwdriver to release the strap pin from the trigger assembly

Warning: Disconnect the device from the host computer before starting the procedure.

Finger strap pulled out of the clasp/buckle

Set screw located (RS5000 only)

Set screw removed with a Philips screwdriver

Trigger assembly turned counter-clockwise until the exit window and scan trigger align

Trigger assembly lifted off of the scan assembly

Replacement trigger assembly aligned with the scan assembly

Trigger assembly rotated 1/4 turn clockwise
