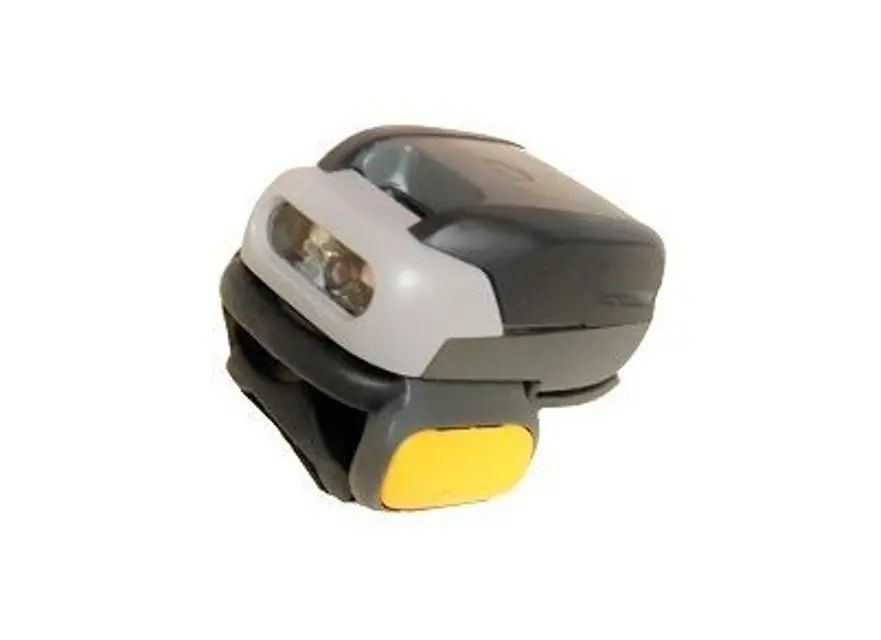

Zebra Imager RS507X

1. Remove the Finger Strap from the Strap Buckle.

2. Pull the Finger Strap out of the Trigger Swivel Assembly.

1. Align a new Finger Strap with the Slots in the Trigger Swivel Assembly.

2. Gently press the Strap Pins to engage with the Slots of the Trigger Swivel Assembly. The Strap Pins snap into the slots.

3. Slip the Finger Strap through the Strap Buckle.

1. Flip the Imager over, such that the bottom of the Imager and the Comfort Pad are facing upwards.

2. On a Triggerless Swivel Assembly, remove the M2 screw.

3. Insert the tip of your finger under the edge of the Comfort Pad at the back of the Imager.

4. Lift the Comfort Pad upwards and remove it from the Imager.

CAUTION:Removing the Comfort Pad other than the described above may result in damage to the Trigger Swivel Assembly of the Imager.

NOTE: It is not necessary to remove the Finger Strap from the Trigger Swivel Assembly.

To remove the Trigger Swivel Assembly:

1. Turn the Imager upside-down.

3. Use a paper clip or similar object to press the Release Latch.

4. Rotate the Trigger Swivel Assembly to align with the back of the Imager.

5. Lift the Trigger Swivel Assembly off the scan assembly.

To install the Trigger Swivel Assembly:

NOTE: The Triggerless Strap Holder should be installed when the Imager is intended to be used in Motion and Proximity Initiated bar code read mode.

To remove the Triggerless Strap Holder:

1. Turn the Imager upside-down.

3. Use a paper clip or similar object to press the Release Latch.

4. Rotate the Triggerless Strap Holder to align with the back of the Imager.

5. Lift the Triggerless Strap Holder off the Imager.

1. Remove the Trigger Swivel Assembly.

2. Press the Strap Buckle off the Trigger Swivel Assembly Pin.

1. Align the pin slot of Strap Buckle with the pin of the Trigger Swivel Assembly.

2. Gently press the pin slot of Strap Buckle to engage with the pin of the Trigger Swivel Assembly. The pin slot snaps onto the pin.

3. Install the Trigger Swivel Assembly.
