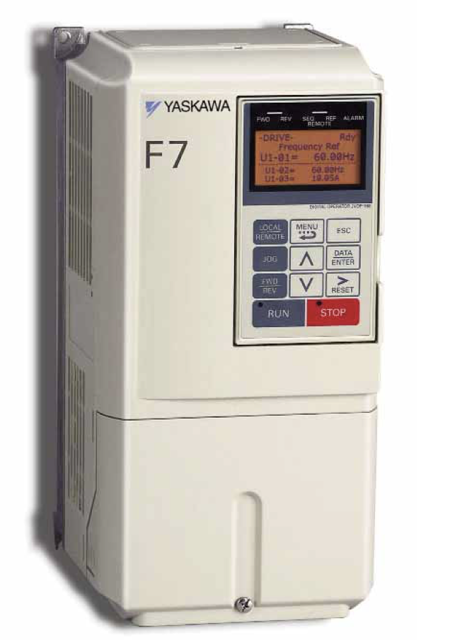

The Yaskawa F7 Drive CIMR-F7U2015 is a high-performance industrial drive designed for precise motor control and energy efficiency. This versatile drive is ideal for various applications, ensuring reliable operation and easy integration into existing systems. Optimize your processes with the advanced features of the Yaskawa F7 Drive.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Find all the essential guides in one place.
Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more
Pre-built workflows to keep your asset running smoothly.
Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more
Integrate maintenance plans directly into your work orders.
Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more
Access the parts list for your equipment in MaintainX.
Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Yaskawa Yaskawa F7 Drive CIMR-F7U2015 CIMR-F7U2015
Create an account to install this asset package.
Integrate maintenance plans directly into your work orders in MaintainX.
Heatsink Cooling Fan Replacement
A cooling fan is attached to the bottom of the Drive.
If the Drive is installed using the mounting holes on the back of the Drive, the cooling fan can be replaced without removing the Drive from the installation panel.
If the Drive is mounted with the heatsink external to the enclosure, the cooling fan can only be replaced by removing the Drive from the enclosure.
Removing the Heatsink Cooling Fan
1. Turn off the input power before removing and installing the heatsink cooling fan.
2. Press in on the right and left sides of the fan cover in the direction of arrows "1" and then pull the fan out in the direction of arrow "2".
3. Pull out the cable connected to the fan from the fan cover and disconnect the power connector.
4. Open the fan cover on the left and right sides in the direction of arrows "3" and remove the fan cover from the fan.
Installing the Heatsink Cooling Fan
Terminal Card Replacement
The terminal card can be removed and mounted without disconnecting the control wiring.
Important: Always confirm that input power is removed and the Charge LED is not lit before removing or mounting the terminal card.
Removing the Terminal Card
1. Remove the terminal cover on the Drive.
2. Remove the Digital Operator and front cover from the Drive.
3. Remove the wires connected to FE and/or NC on the terminal card.
4. Loosen the mounting screws on the left and right sides of the terminal card until they are free; It is not necessary to remove the mounting screws completely, as they are captive and self-rising.
5. Pull the terminal card out in the direction of the block arrow.
Mounting the Terminal Card
1 Yearly F7 Drive Inspection
Inspect conductors and wire connections for loose lugs, screws, wires, hot spots, corrosion, bent conductors, breakage, cracking, discoloration, and spacing
Inspect terminal blocks for looseness or damage
Check DC bus capacitors for leakage, ruptures, expansion, capacitance, and insulation resistance
Inspect relays and contactors for noise and contact discoloration
Check soft charge resistors for cracks and discoloration
Check control circuit operation, including speed reference voltage/current and I/O contact operation
Inspect the Cooling Fans/Fins & Heatsink for loose connectors
Check the digital operator for key functionality, and cleanliness
Note: If the Drive is used under the following conditions, it may be necessary to inspect more often:
2 Yearly / 20000 Hourly Cooling Fan Replacement
Warning: This procedure requires trained personnel with PPE!
Replace the cooling fan(s) every 2 to 3 years (20,000 hours) with a new part.
Note: The standard replacement period is based on the following usage conditions:
Ambient temperature
Load factor
Operating time
Was the cooling fan replaced?
Sign off on the cooling fan replacement
10 Yearly DC Bus and Control Power Fuses Replacement
Warning: This procedure should be performed by a trained technician
Standard replacement period is based on the following usage conditions: Ambient temperature: Yearly average of 86°F / 30°C, Load factor: 80% maximum, Operating time: 12 hours maximum per day
Old DC bus fuse removed
New DC bus fuse installed
Old control power fuse removed
New control power fuse installed
Technician's signature
Access the parts list for your equipment in MaintainX.
Diode Module
SID003113
Control PCB (1PCB)
ETC618390-S3020
Transistor Module
STR001315
Terminal PCB (2PCB)
ETC618410
Heat Sink Fan
FAN001066
Diode Module
SID003113
Control PCB (1PCB)
ETC618390-S3020
Transistor Module
STR001315
Terminal PCB (2PCB)
ETC618410
Heat Sink Fan
FAN001066
Diode Module
SID003113
Control PCB (1PCB)
ETC618390-S3020
Transistor Module
STR001315
Terminal PCB (2PCB)
ETC618410
Heat Sink Fan
FAN001066
