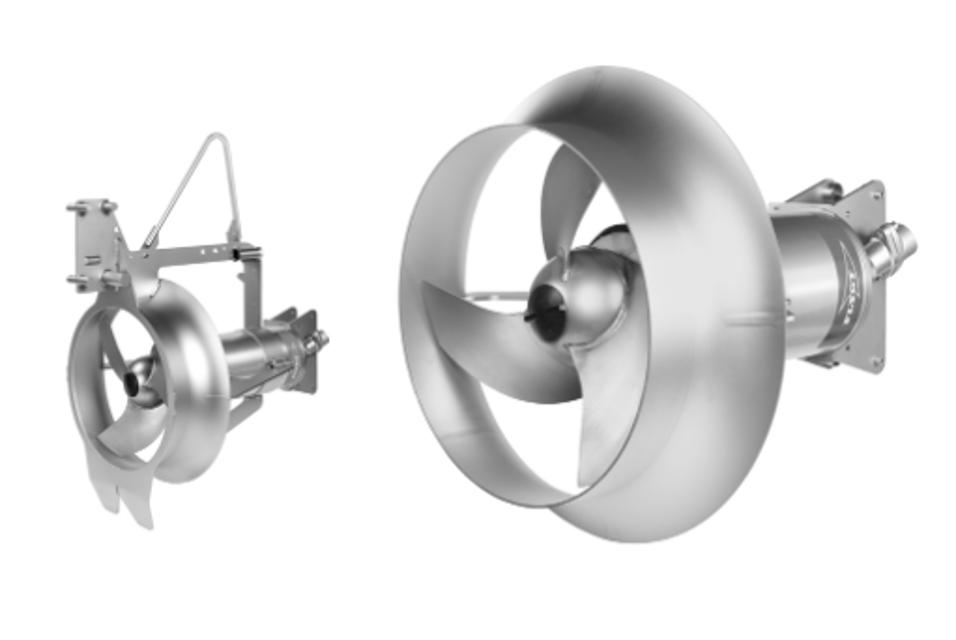

Xylem Heavy-Duty Submersible Mixer SR4660.310

Disconnect and lock out power before servicing

Inspection and Replacement Tasks

Inspect and replace key components

Check the stator housing for any leakage, and drain if necessary.

Check mechanical seals and O-rings and replace any damaged seals with new ones.

CLS (not for Ex-approved mixers)

Check the oil housing for any leakage.

Check mechanical seals and O-rings and replace any damaged seals with new ones.

Check the coolant level (mixer with cooling jacket).

Check the connections and the electrical motor.

Lay the mixer on two supports or suspend the mixer horizontally from an overhead crane.

Place a vessel under the mixer to hold the oil being drained.

Remove the drain plug and filling plug to drain the oil.

Re-position the O-ring and the drain plug after draining the oil.

Tighten the drain plug to the specified torque (10-20 Nm or 7.4-14.8 ft-lbs).

Select the mixer working position and required oil quantity

Fill with new oil through the oil filling hole with the mixer in a horizontal position.

Disconnect and lock out power before servicing

Ensure only certified electricians and Xylem-authorized mechanics perform maintenance on EN/ATEX or FM-approved mixers

Verify the following requirements are met

Perform general inspection of the mixer

Control and replace wear parts as necessary

Inspect and control zinc-anodes

Ensure the following tools are available

Twist off the propeller plug and the O-ring

Loosen the hub screw using an M12 hexagon bit adapter (part no 84 14 79), n=10

Remove the shaft key, handling it by its ends
