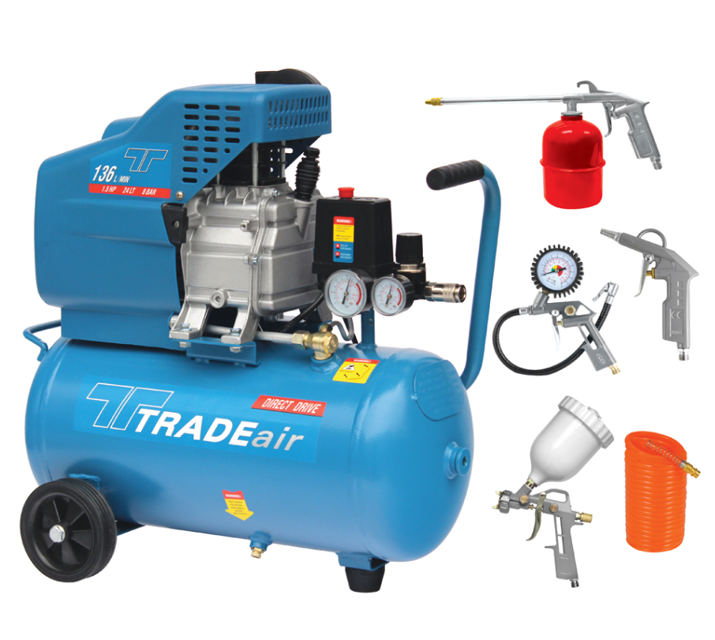

TradeAir Direct Drive Compressor MCFRC108

Warning: This unit is shipped with oil in the compressor pump. Oil must be added to the unit prior to operating.

Oil level in the pump is at the red mark on the sight glass

Small hole in the top of the breather pipe is clear

Sign off on the oil warning check

Warning: Before maintenance operation, stop the air compressor, disconnect the unit from the mains supply and discharge all air in the air tank.

Clean and check valve assembly, replace gaskets/ valves if worn or damaged.

Select the type of compressor oil used

Sign off on the compressor maintenance

Warning: Before maintenance operation, stop the air compressor, disconnect the unit from the mains supply and discharge all air in the air tank.

Check oil level before each use.

Drain the condensation from the air receiver.

Select the type of compressor oil used

Sign off on the daily maintenance

Warning: Before maintenance operation, stop the air compressor, disconnect the unit from the mains supply and discharge all air in the air tank.

Air compressor stopped and disconnected from the mains supply?

All air in the air tank discharged?

Air filter element cleaned or replaced as required?

Select the type of compressor oil used

Sign off on the weekly direct drive compressor maintenance

NOTE: The oil must be changed after the first 10 hrs of operation then every 20 hrs thereafter.

Select the type of oil used based on temperature

Was the oil changed successfully?
