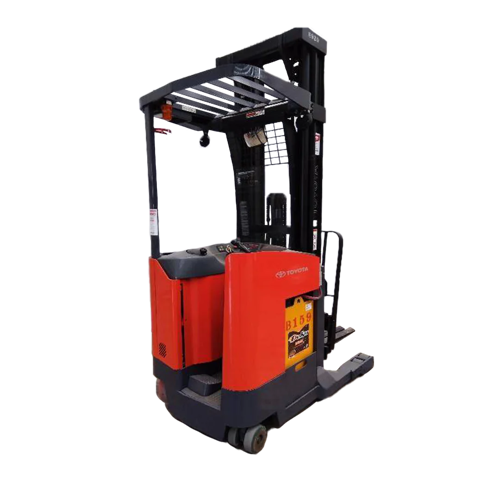

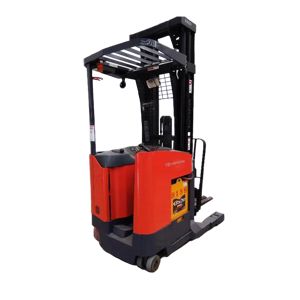

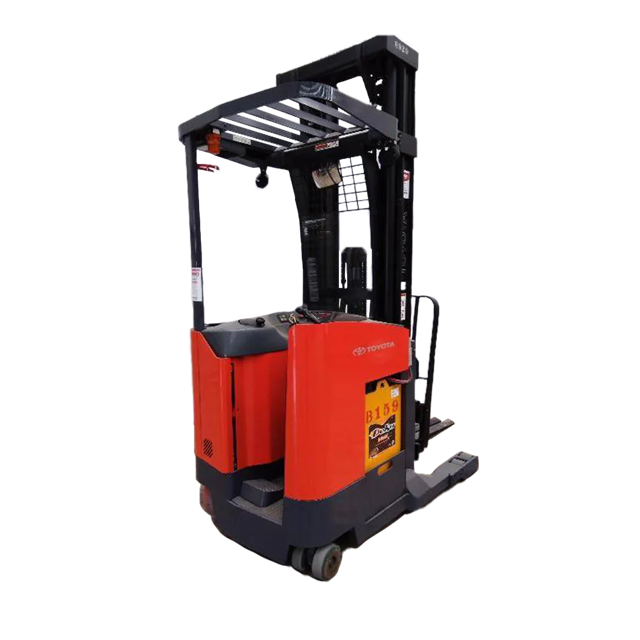

Toyota Reach Lift Truck 7BSU25

Inspect the condition of the drive and load wheels

Remove any steel chips and foreign material to prevent damage to the wheels

Check for gouging and chunking of tire surface

Sign off on the wheel maintenance

Check the oil level of the drive housing

Check and clean the drive housing breather

Lubricate steering bearing via grease fittings

Sign off on the drive unit maintenance

Check the electrolyte level and specific gravity following the battery manufacturer’s instruction manual

Check the connector. Make sure all powered functions are shut down when disconnected

Check the battery gates. Be sure they are properly installed and locked securely in place

Check the free play of the battery. Be sure that it has no more than 0.50 in. (12.7 mm) of movement in any direction

Deadman pedal returns to up position when released in the brake system

Travel is cut out and brake is applied when deadman pedal is in fully raised position in the brake system

Forks inspected for damage, bending, cracking, or signs of unauthorized modification

Forks checked for minimum thickness

Hydraulic connections and hoses checked for leaks

Proper fluid level in hydraulic reservoir

Mast inspected for damage or binding

Each switch controls the assigned function

Check for satisfactory brake operation

Check the brake actuation and deadman switch adjustment

Inspect the brake pads and rotor for minimum thickness, gap, and signs of oil
