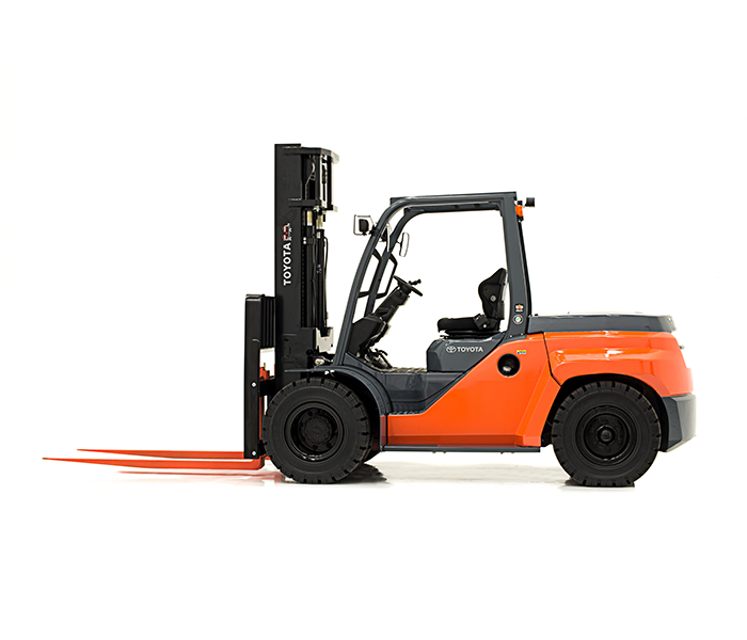

Toyota Forklift 7FDU70
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Toyota Forklift 7FDU70
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Toyota Forklift 7FDU70
Create an account to install this asset package.
Maintenance Plans for Toyota Forklift Model 7FDU70
Integrate maintenance plans directly into your work orders in MaintainX.
250 Hour / 6 Week Steering System Maintenance
Inspect Steering Wheel's Play and looseness
Inspect Steering Wheel's function
Inspect Steering Valve for oil leak
Tighten looseness of mounting
Inspect Power Steering for oil leak
Inspect power steering for mounting and linkage looseness
Inspect Knuckle for King pin looseness
Sign off on the steering system maintenance
250 Hour / 6 Week Replacement
Engine oil replaced?
Engine oil filter replaced?
Hydraulic oil filter replaced?
Sign off on the replacement procedure
1000 Hour / 6 Month Maintenance
Measure fuel system injection timing
Inspect draining of sedimenter in fuel system
Measure Stall and hydraulic pressure in torque converter & transmission
Clean hydraulic oil tank and oil strainer
Inspect accessory drive belts for cracks, damage, breaks, splits
Sign off on the 1000 Hour / 6 Month Maintenance
250 Hour / 6 Week Power Transmission System Maintenance
Inspect differential for leak
Inspect differential oil level
Inspect Planetary Gear for leak
Inspect Planetary Gear oil level
Inspect Torque Converter & Transmission for Leak
Inspect Torque Converter & Transmission fluid level
Inspect Operating mechanism function and looseness of the Torque Converter & Transmission
Inspect Control valve and clutch functions
Inspect Inching valve function
2000 Hour / 12 Month Replacement
Replace differential oil
Replace planetary gear oil
Replace wheel bearing grease
Replace air cleaner element
Replace cupos and seals for brake booster and wheel cylinders
Sign off on the replacement procedure
