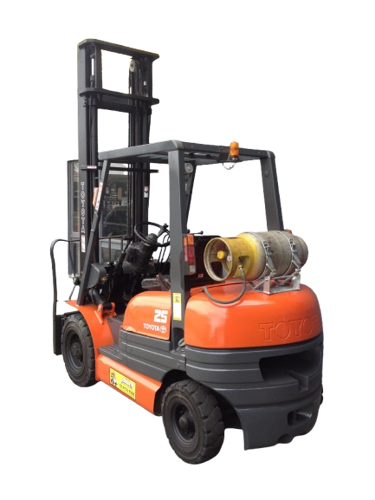

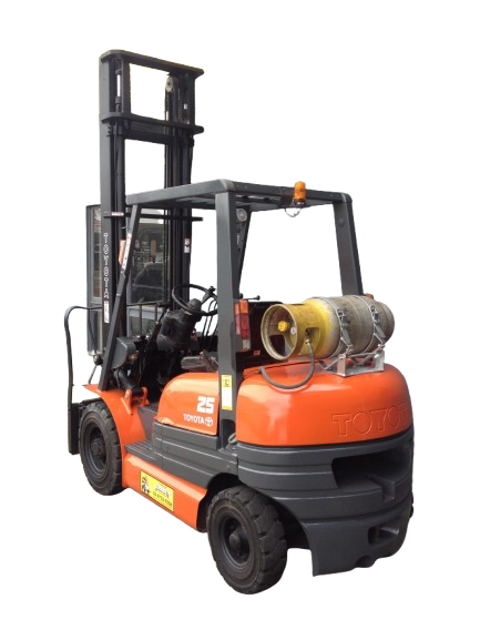

Toyota Forklift 6FG25

Inspect function, wear, damage, leak and mounting looseness in Master cylinder and wheel cylinder

Inspect Wear of shoe sliding portion and lining

Inspect Shoe operating condition

Inspect Automatic adjuster function

Inspect Backing plate for deformation, cracks and damage

Retighten Backing plate loose mounting

Power steering rubbers parts replaced

Brake fluid reservoir tank hose replaced

Torque converter rubber hoses replaced

Note: Chains are replaced every 3 years

Sign off on the 2 Year Replacement

Inspect linkage wear and mounting condition of the rods, links and arm

Inspect damage of power steering hose

Inspect cracks and deformation in knuckle

Measure wheel alignment in steering shaft

Measure steering shaft left and right turning angle

Sign off on the steering system inspection

Inspect loosening and damage of cylinder mounting

Inspect deformation and damage of rod, rod screw and rod end

Measure natural drop and natural forward tilt

Inspect for oil leaks and damage in the cylinder

Inspect for wear and damage of the pin and cylinder bearing

Inspect cylinder for uneven movement

Inspect for oil leaks and abnormal sound from the oil pump

Measure tire inflation pressure of the wheels

Inspect for tire cuts, damage, and uneven wearing

Tighten for loose rim and hub nuts

Inspect for metal chips, pebbles, or foreign matter trapped in tire grooves

Inspect rim, side bearing, and disc wheel for damage

Inspect for abnormal sound and looseness in the front wheel bearing

Inspect for abnormal sound and looseness in the rear wheel bearing

Sign off on the drive system maintenance
