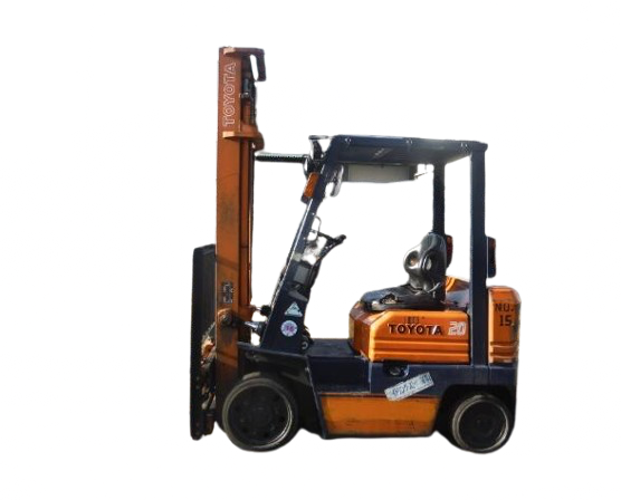

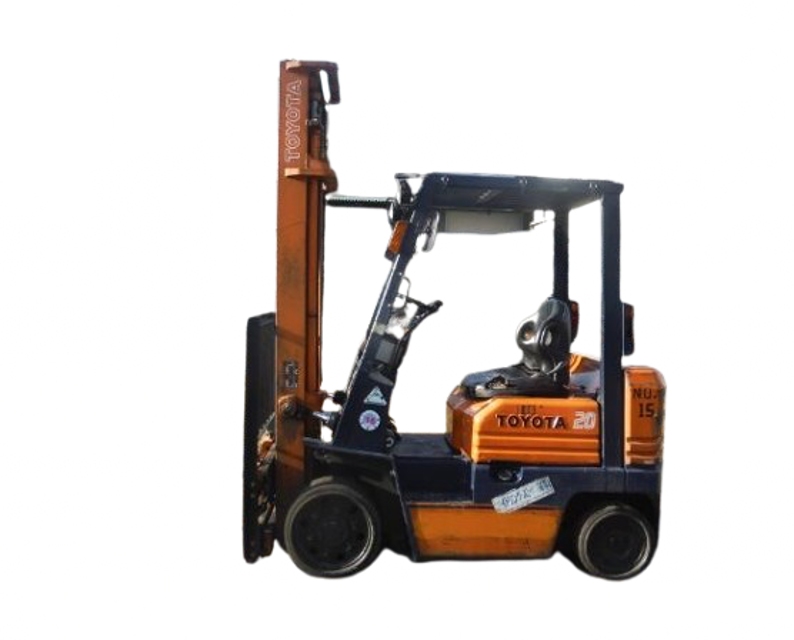

Toyota Forklift 5FGC20

Inspect fork and stopper pin for abnormality

Inspect for misalignment between left and right fork fingers

Inspect each part for deformation, damage, and cracks at welded parts

Inspect mast and lift bracket for looseness

Inspect wear, damage, and rotating condition of rollers

Inspect mast strip for wear and damage

Inspect tension, deformation, and damage of chain

Inspect for abnormality in chain anchor bolt

Measure play and reserve in the brake pedal

Inspect the braking effect of the brake pedal

Inspect the pull margin of the parking brake

Inspect the braking effect of the parking brake

Inspect for looseness or damage in the parking brake rod and cable

Inspect for leaks, damage, and mounting condition of the brake pipe

Measure clearance between drum and lining

Sign off on the braking system maintenance

Inspect for cracks on the distributor cap

Inspect for spark plug burning and measure the gap

Inspect for burning on the distributor side terminal

Inspect for wear and damage on the distributor cap center piece

Inspect pinion gear meshing status

Inspect wiring harness for damage

Measure injection timing in fuel system

Measure stall and hydraulic pressure in torque converter and transmission

Clean hydraulic oil tank and oil strainer

Measure battery fluid specific gravity

Inspect open circuit in glow plug

Inspect open circuit in intake heater

Sign off on the 1000 Hour / 6 Month Maintenance

Retighten loose bolts in differential

Inspect looseness at spline connection

Inspect looseness at flexible joint

Inspect axle shaft torsion and crack

Sign off on the power transmission system maintenance
