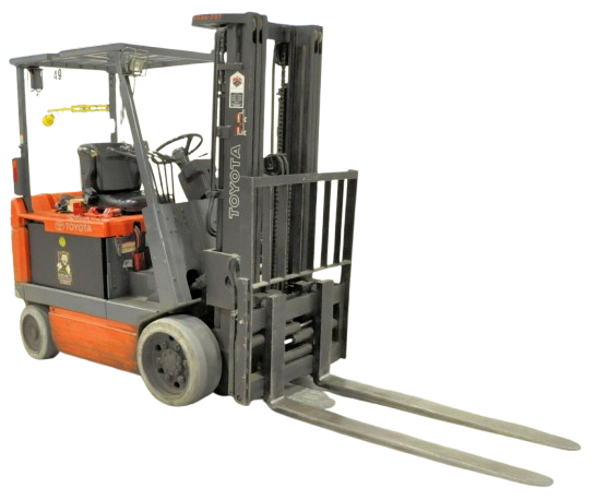

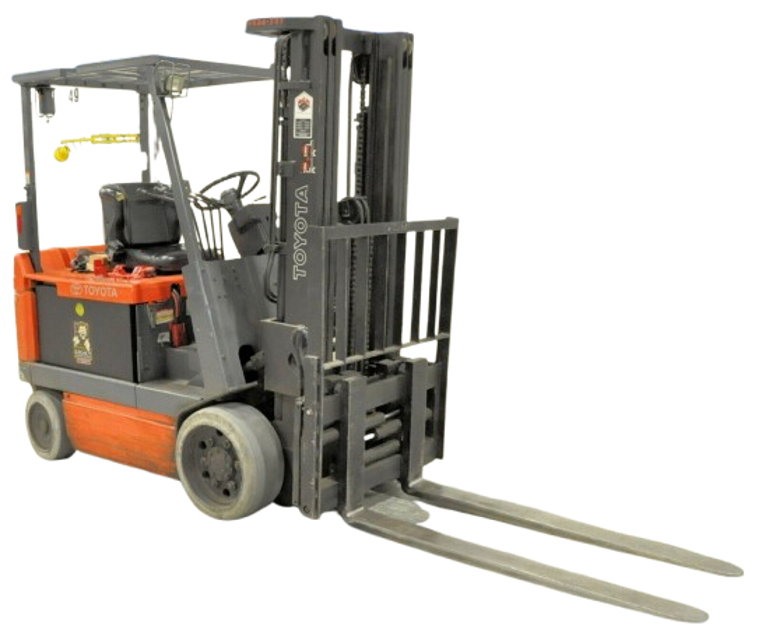

Toyota Forklift 5FBCU30
Need answers fast?
Explore the manual using AI.
The Toyota Forklift 5FBCU30 is a versatile and reliable electric forklift designed for efficient material handling in various industrial environments. Known for its durability and performance, this model offers excellent maneuverability and low operational costs, making it a preferred choice for businesses seeking productivity and safety.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Toyota Forklift 5FBCU30
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Toyota Forklift 5FBCU30
Create an account to install this asset package.
Maintenance Plans for Toyota Forklift Model 5FBCU30
Integrate maintenance plans directly into your work orders in MaintainX.
2000 Hour / 12 Month Maintenance
Measure relief pressure in oil control valve
Inspect damage and cracks of frame, cross members, etc.
Retighten bolt looseness in body
170 Hour / 1 Month Power Train System Inspection
Inspect differential for oil leakage
Inspect oil level in differential
Inspect transmission for oil leakage
Inspect oil level in transmission
170 Hour / 1 Month Hydraulic System Maintenance
Inspect loosening and damage of cylinder mounting
Inspect deformation and damage of rod and rod end
Inspect cylinder operation
Inspect natural drop and natural forward tilt
Inspect cylinder oil leak and damage
Inspect wear and damage of pin and cylinder bearing
Measure cylinder lifting speed
Inspect cylinder uneven movement
Inspect oil leak and abnormal sound in oil pump
170 Hour / 1 Month Maintenance
Inspect head guard cracks at welded portion
Inspect head guard deformation and damage
Retighten loosening of mounting in back-rest
Inspect back-rest for deformation, crack and damage
Inspect function and mounting condition of lighting system
Inspect function and mounting condition of horn
Inspect function and mounting condition of direction indicator
Inspect function and mounting condition of back up buzzer
Inspect instruments functions
2000 Hour / 12 Month Replacement
Differential oil replaced
Transmission oil replaced
Wheel bearing grease replaced
Master cylinder rubber parts replaced
Wheel cylinder rubber parts replaced
Sign off on the replacement procedure
