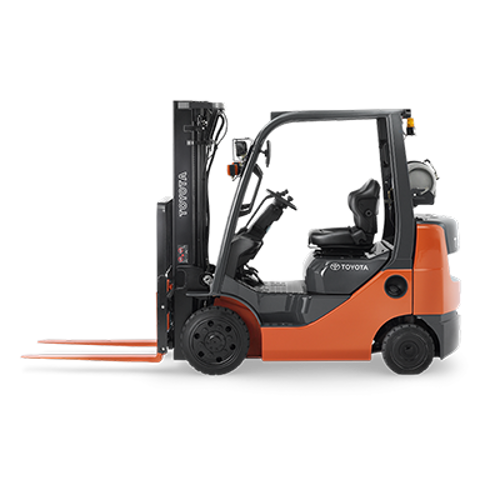

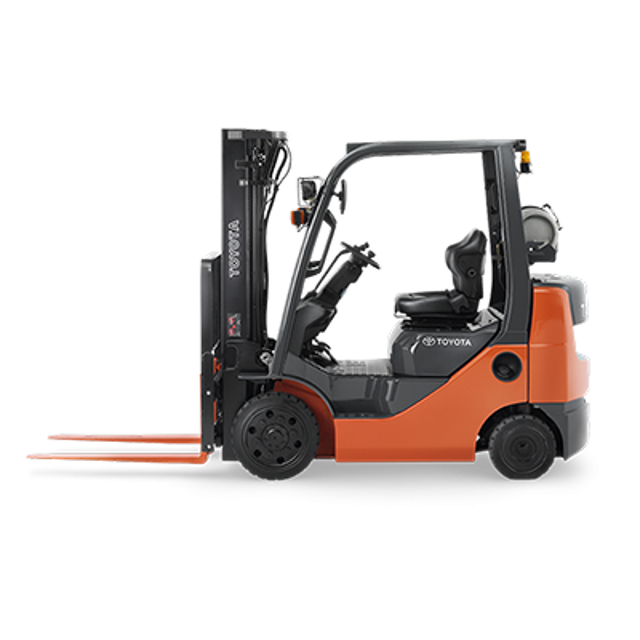

Toyota Forklift 50-8FGCU32

Inspect crack at welded portion

Inspect defromation and damage in head guard

Retighten loosening of mounting in back-rest

Inspect back-rest for deformation, crack and damage

Inspect function and mounting conditions of the lighting system, horn, direction indicator and backup buzzer

Inspect rear-view mirror for dirt and damage

Inspect rear reflection status of rear-view mirror

Inspect seat for loosening and damage of mounting

Inspect cracks, damage and deformation of housing

Inspect cracks, damage and deformation of beam

Measure looseness of axle beam in vehicle longitudinal direction

Sign off on the drive system maintenance

Inspect abnormality of fork and stopper pin

Inspect misalignment between left and right fork fingers

Inspect deformation and damage of each part and crack at welded part

Inspect mast and lift bracket looseness

Inspect wear, damage and rotating condition of rollers

Inspect wear and damage of mast trip

Inspect tension, deformation and damage of chain

Inspect abnormality of chain anchor bolt

Measure play and reserve of brake pedal

Inspect operating force, braking effect, linkage and cable looseness and damage of the parking brake

Inspect braking effect of brake pedal

Inspect brake pipe for leak, damage and mounting condition

Inspect reservoir tank for leak and fluid level

Measure clearance between drum and lining on brake drum and brake shoe

Inspect wet brake's cooling oil level in tank

Sign off on the brake system maintenance

- Retighten loosening and damage of cylinder mounting

- Inspect deformation and damage of rod, rod screw and rod end

- Measure natural drop and natural forward tilt; - Inspect cylinder for damage and oil leak

- Inspect cylinder for wear and damage of pin and pin support

- Inspect oil pump for oil leak and abnormal sound

- Inspect oil level and contamination in hydraulic oil tank
