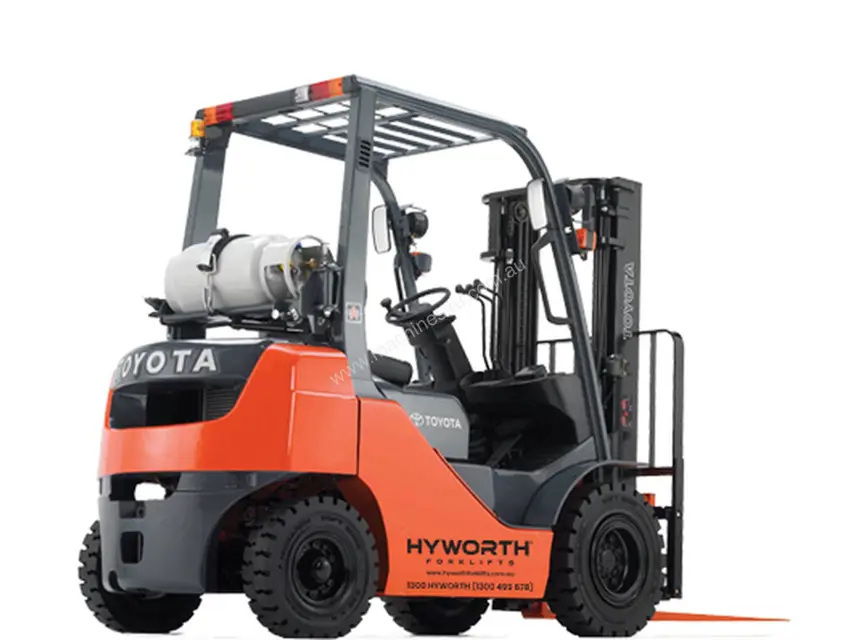

Toyota Forklift 30-8FG25

Retighten loosening and damage of cylinder mounting

Inspect deformation and damage of rod, rod screw and rod end

Inspect cylinder for damage and oil leak

Inspect cylinder for wear and damage of pin and pin support

Inspect function, wear, damage, leak and mounting looseness in Master cylinder and wheel cylinder

Inspect Wear of shoe sliding portion and lining

Inspect Shoe operating condition

Inspect Automatic adjuster function

Inspect Backing plate for deformation, cracks and damage

Retighten Backing plate loose mounting

Measure Valve clearance (IDZ-II·2Z)

Retighten cylinder head bolt loosening

Measure Injection nozzle injection pressure and spray status

Inspect Exhaust system piping looseness and damage

Oil pump seal for material handling replaced

DPF Mafler filter replaced (Optional)

Enter the machine's hour meter reading

SAS Swing lock cylinder replaced (if machine's hour meter reading is over 10000)

3-way catalytic muffler replaced (if machine's hour meter reading is over 3500 or it's been 5 years)

Sign off on the 3 Year Replacement

Sign off on the replacement procedure
