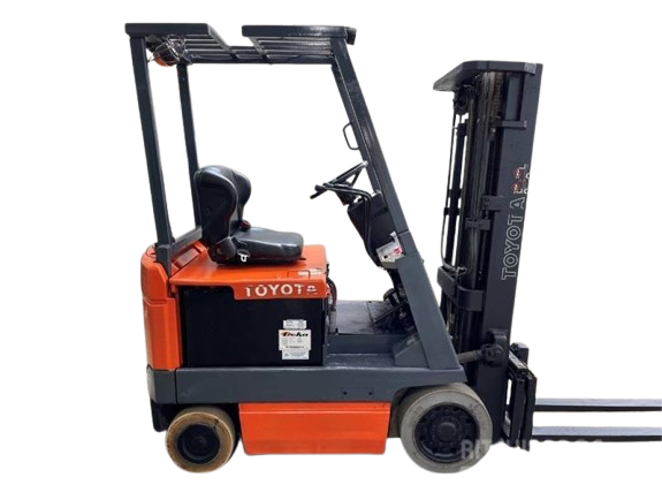

Toyota Forklift 30-5FBCU15
Need answers fast?
Explore the manual using AI.
The Toyota Forklift 30-5FBCU15 is a reliable industrial asset designed for efficient material handling. Known for its durability and performance, this forklift model is ideal for various warehouse and construction applications, ensuring optimal productivity and safety in operations.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Toyota Forklift 30-5FBCU15
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more

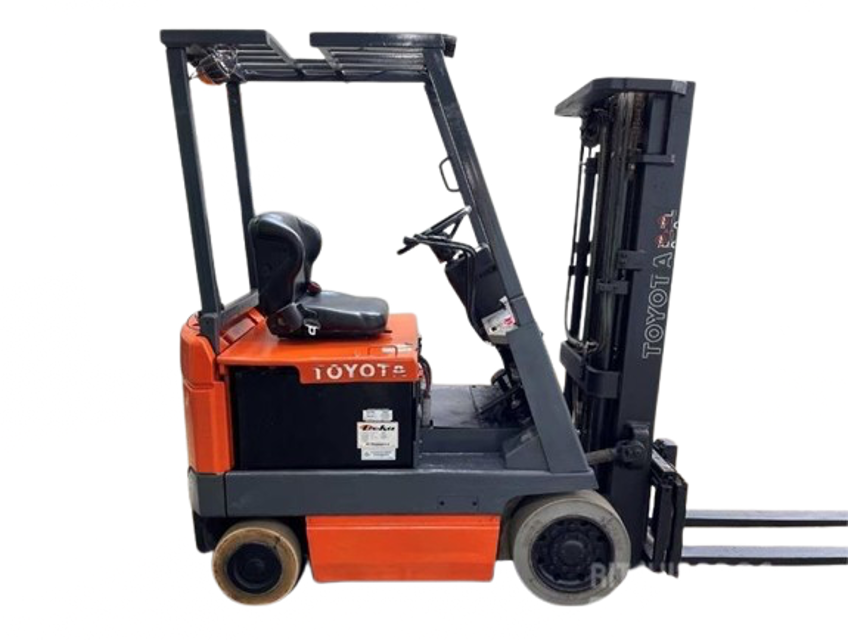

Toyota Forklift 30-5FBCU15
Create an account to install this asset package.
Maintenance Plans for Toyota Forklift Model 30-5FBCU15
Integrate maintenance plans directly into your work orders in MaintainX.
170 Hour / 1 Month Maintenance
Inspect head guard cracks at welded portion
Inspect head guard deformation and damage
Retighten loosening of mounting in back-rest
Inspect back-rest for deformation, crack and damage
Inspect function and mounting condition of lighting system
Inspect function and mounting condition of horn
Inspect function and mounting condition of direction indicator
Inspect function and mounting condition of back up buzzer
Inspect instruments functions
1000 Hour / 6 Month Maintenance
Inspect brush wear and sliding contact status of the motor
Inspect motor commutator fouling and damage
Replace hydraulic oil
Replace brake fluid
Sign off on the maintenance
2000 Hour / 12 Month Material Handling System Inspection
Inspect cracks at fork root and welded part while forklift is new
Inspect wear and damage of mast support bushing
Inspect wear and damage of roller pins
Sign off on the inspection
2000 Hour / 12 Month Maintenance
Measure relief pressure in oil control valve
Inspect damage and cracks of frame, cross members, etc.
Retighten bolt looseness in body
Sign off on the maintenance
170 Hour / 1 Month Power Train System Inspection
Inspect differential for oil leakage
Inspect oil level in differential
Inspect transmission for oil leakage
Inspect oil level in transmission
