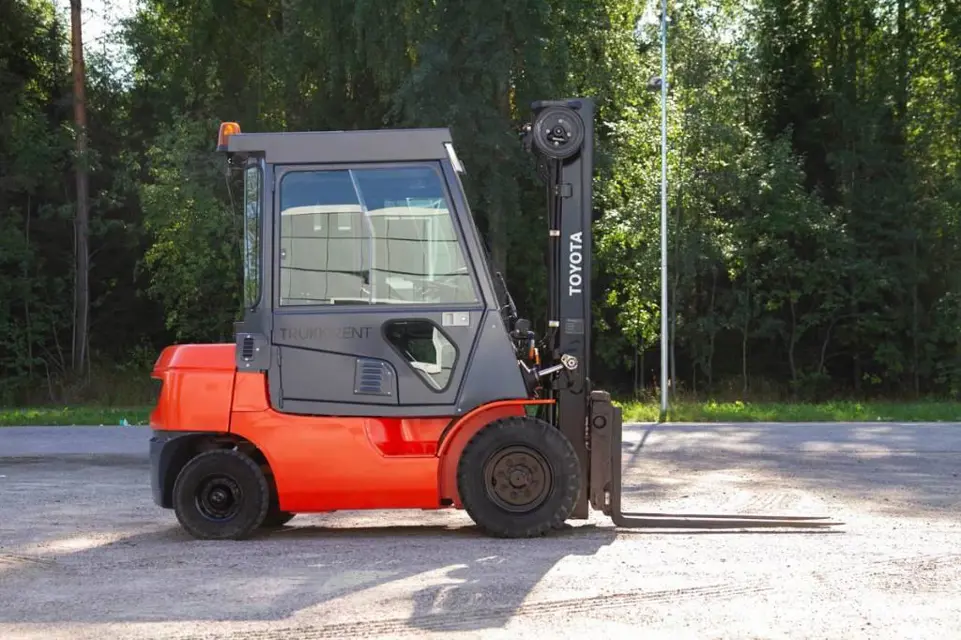

Toyota Forklift 02-7FDF30
Need answers fast?
Explore the manual using AI.
The Toyota Forklift 02-7FDF30 is a robust industrial forklift designed for efficient material handling in various environments. Known for its reliability and performance, this model is ideal for warehouses and manufacturing facilities, ensuring optimal productivity and safety.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Toyota Forklift 02-7FDF30
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Toyota Forklift 02-7FDF30
Create an account to install this asset package.
Maintenance Plans for Toyota Forklift Model 02-7FDF30
Integrate maintenance plans directly into your work orders in MaintainX.
250 Hour / 6 Week Replacement
Engine oil replaced?
Engine oil filter replaced?
Hydraulic oil filter replaced?
Sign off on the replacement procedure
2000 Hour / 12 Month Engine System Maintenance
Measure Valve clearance (IDZ-II·2Z)
Measure main body compression
Retighten cylinder head bolt loosening
Inspect muffler rubber mount
Measure Injection nozzle injection pressure and spray status
Inspect radiator rubber mount
Sign off on the engine system maintenance
250 Hour / 6 Week Drive System Maintenance
Measure Wheels tire inflation pressure
Inspect wheels for tire cuts, damage, and uneven wearing
Retighten loose rim and hub nuts
Measure tire groove depth
Inspect metal chips, pebbles, and other foreign matter
Inspect rim, side bearing, and disc wheel damage
Inspect abnormal sound and looseness of front wheel bearing
Inspect abnormal sound and looseness of rear wheel bearing
Measure looseness of axle beam in vehicle longitudinal direction while equipment is new
500 Hour / 3 Month Power Transmission System Maintenance
Retighten propeller shaft and axle shaft loose joint
Inspect inline filter in DPF Muffler
Replace engine oil filter
Replace engine coolant
Sign off on the power transmission system maintenance
2000 Hour / 12 Month Safety Devices Maintenance
Inspect damage and cracks of frame, cross members, etc.
Retighten bolt looseness
Inspect lock cylinder accumulator performance
Inspect rusting and corrosion of load sensor
Sign off on the safety devices maintenance
Parts for Toyota Forklift 02-7FDF30
Access the parts list for your equipment in MaintainX.
Adapter
09450-23320-71
Engine
09010-23320-71
Puller C Set
09950-760003-71
Front Hub Inner Bearing Cone Replacer
09608-76003-71
Belt Tension Gage
09216-76002-71
Adapter
09450-23320-71
Engine
09010-23320-71
Puller C Set
09950-760003-71
Front Hub Inner Bearing Cone Replacer
09608-76003-71
Belt Tension Gage
09216-76002-71
Adapter
09450-23320-71
Engine
09010-23320-71
Puller C Set
09950-760003-71
Front Hub Inner Bearing Cone Replacer
09608-76003-71
Belt Tension Gage
09216-76002-71
