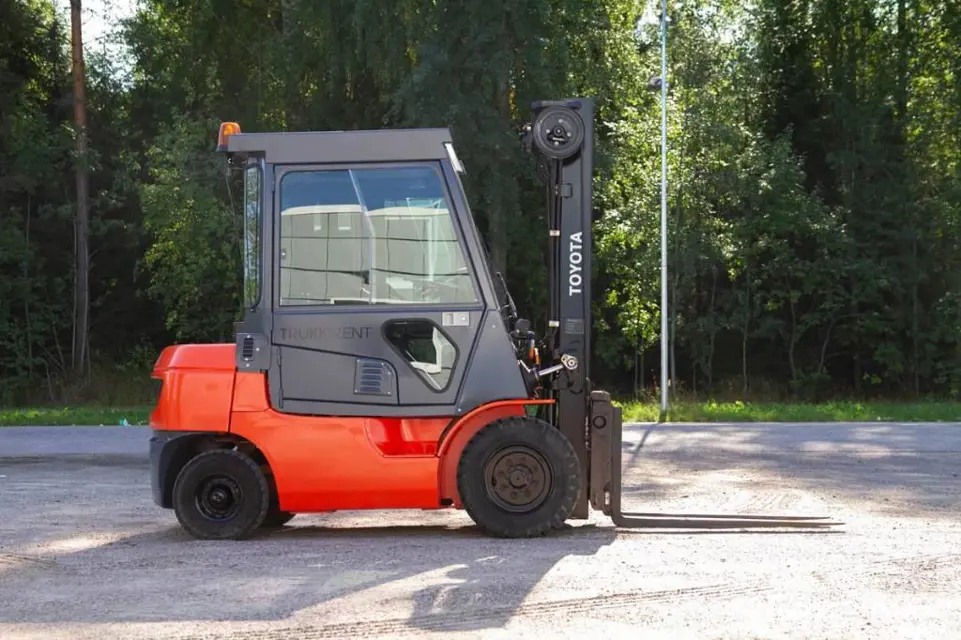

Toyota Forklift 02-7FDF20
Need answers fast?
Explore the manual using AI.
The Toyota Forklift 02-7FDF20 is a robust industrial lift truck designed for efficient material handling in warehouses and construction sites. Known for its reliability and performance, this forklift model combines advanced technology with user-friendly features to enhance productivity and safety in various operational environments.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Toyota Forklift 02-7FDF20
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Toyota Forklift 02-7FDF20
Create an account to install this asset package.
Maintenance Plans for Toyota Forklift Model 02-7FDF20
Integrate maintenance plans directly into your work orders in MaintainX.
250 Hour / 6 Week Drive System Maintenance
Measure Wheels tire inflation pressure
Inspect wheels for tire cuts, damage, and uneven wearing
Retighten loose rim and hub nuts
Measure tire groove depth
Inspect metal chips, pebbles, and other foreign matter
Inspect rim, side bearing, and disc wheel damage
Inspect abnormal sound and looseness of front wheel bearing
Inspect abnormal sound and looseness of rear wheel bearing
Measure looseness of axle beam in vehicle longitudinal direction while equipment is new
2000 Hour / 12 Month Maintenance
Inspect Damage of power steering hose
Inspect Cracks and deformation in knuckle
Inspect function, wear, damage, leak and mounting looseness in Master cylinder and wheel cylinder
Inspect Wear of shoe sliding portion and lining
Inspect Drum wear and damage
Inspect Shoe operating condition
Inspect Anchor pin rusting
Measure Return spring fatigue
Inspect Automatic adjuster function
500 Hour / 3 Month Power Transmission System Maintenance
Retighten propeller shaft and axle shaft loose joint
Inspect inline filter in DPF Muffler
Replace engine oil filter
Replace engine coolant
Sign off on the power transmission system maintenance
2000 Hour / 12 Month Engine System Maintenance
Measure Valve clearance (IDZ-II·2Z)
Measure main body compression
Retighten cylinder head bolt loosening
Inspect muffler rubber mount
Measure Injection nozzle injection pressure and spray status
Inspect radiator rubber mount
Sign off on the engine system maintenance
2000 Hour / 12 Month Replacement
Replace differential oil
Replace catalytic muffler
Replace wheel bearing grease
Replace air cleaner element
Replace cupos and seals for brake booster and wheel cylinders
Sign off on the replacement procedure
Parts for Toyota Forklift 02-7FDF20
Access the parts list for your equipment in MaintainX.
Electrical Tester
09082-76002-71
Belt Tension Gage
09216-76002-71
Oil Filter Wrench
09228-76004-71
Inner Mast Stopper
09610-22000-71
Adapter
09350-23320-71
Electrical Tester
09082-76002-71
Belt Tension Gage
09216-76002-71
Oil Filter Wrench
09228-76004-71
Inner Mast Stopper
09610-22000-71
Adapter
09350-23320-71
Electrical Tester
09082-76002-71
Belt Tension Gage
09216-76002-71
Oil Filter Wrench
09228-76004-71
Inner Mast Stopper
09610-22000-71
Adapter
09350-23320-71
