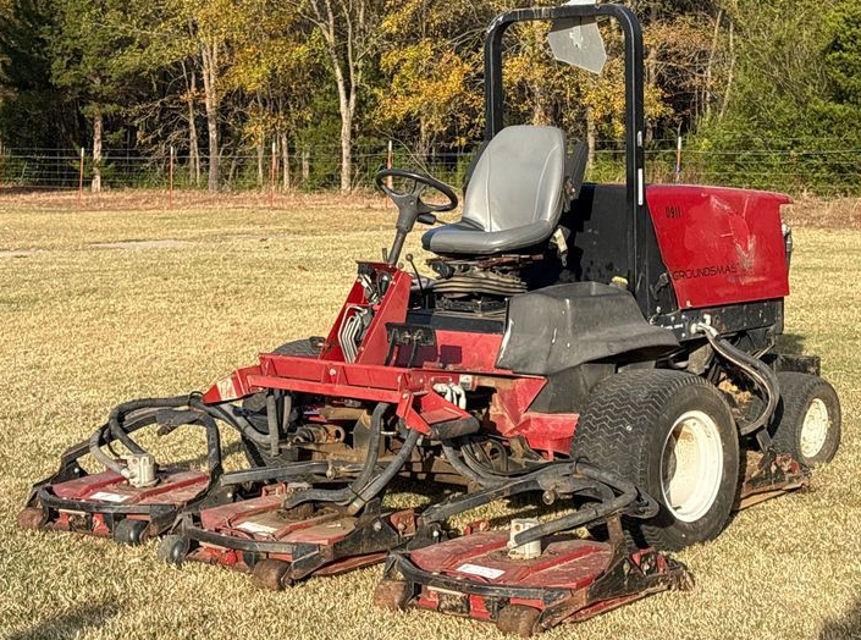

Toro Outdoor Power Equipment 30856

Measure the center-to-center distance at the front and rear of the steering tires

Remove the cotter pin and nut from either tie rod ball joint

Remove tie rod ball joint from axle case support

Loosen the clamps at both ends of the tie rods

Rotate the detached ball joint inward or outward one complete revolution

Tighten clamp at loose end of tie rod

Rotate the entire tie rod assembly the same direction one complete revolution

Tighten clamp at connected end of tie rod

Position the machine on a level surface

Position the wheel so that the check/drain plug is at the lowest position (6 o’clock)

Place a drain pan under the hub

Remove the plug and allow the oil to drain

Place another drain pan under the brake housing on the other side of the wheel

Remove check/drain plugs from the brake housing and allow the oil to drain

Park machine on a level surface, shut engine off, position speed control into LOW range and lower cutting units to the floor.

Depress only the right brake pedal and engage the parking brake.

Jack up left side of machine until left front tire is off the shop floor.

Support machine with jack stands to prevent it from falling accidentally.

Start engine and allow to run at low idle.

Position the machine on a level surface, lower the cutting units, stop the engine, engage the parking brakes, and remove the ignition key.

Clean the area around the filter mounting area. Place a drain pan under the filter and remove the filter.

Clean the area around the filter mounting area.

Place a drain pan under the filter.

Lubricate the new filter gasket and fill the filter with hydraulic fluid.

Lubricate the new filter gasket.

Fill the filter with hydraulic fluid.

Ensure that the filter mounting area is clean. Screw the filter on until the gasket contacts the mounting plate; then tighten the filter an additional 1/2 turn.

Position the machine on a level surface, lower the cutting units, stop the engine, engage the parking brakes, and remove the ignition key.

Clean the area around the filter mounting area.

Place a drain pan under the filter and remove the filter.

Lubricate the new filter gasket and fill the filter with hydraulic fluid.

Ensure that the filter mounting area is clean.

Screw the filter on until the gasket contacts the mounting plate; then tighten the filter an additional 1/2 turn.

Start the engine and let it run for about two minutes to purge air from the system.

Stop the engine and check for leaks.

Use Toro replacement filters Part No. 94-2621 for the rear (cutting unit) and 75-1310 for the front (charge) of the machine.
