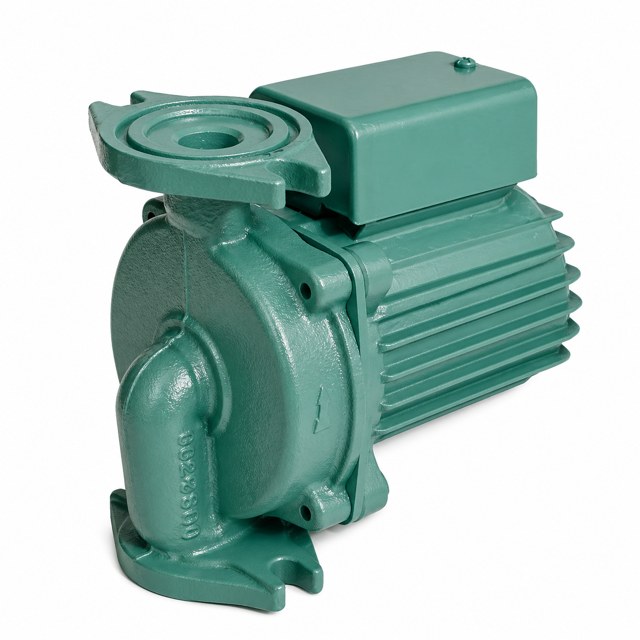

Taco Pump KS 6013

Ensure all parts to be replaced are free from burrs and damage

Insert stationary element of seal into seal cover

Ensure seal cover O-ring is properly seated in groove

Install retaining ring in seal cover to retain stationary seal

Place the seal cover back onto the pump cover and bolt in place

Shaft Preparation and Seal Installation

Record motor bearing temperature

Is the motor bearing temperature within the normal range?

Is the suction gauge reading normal?

Is the discharge gauge reading normal?

Describe any abnormal findings or issues detected during inspection

Loosen all radial set screws on the seal rotating element

Remove the seal rotating element

Apply silicone grease on the OD of the shaft

Remove the stationary seal element from the top of the cover/adapter

Ensure all parts are free from burrs and damage

Insert stationary element of seal into seal cover

Avoid touching seal surfaces to prevent leakage

Avoid contaminating seal faces with fingerprints

Lubricate pump shaft end with silicone grease

Avoid using petroleum oil or grease

Ensure the pump is turned off and isolated from the power supply

Gather necessary tools and materials, including silicone grease

Seal Cover and Shaft Coupling Removal

Apply silicone grease on the OD of the shaft in the area between the seal and the end of the shaft

Draw off the seal rotating element from the shaft
