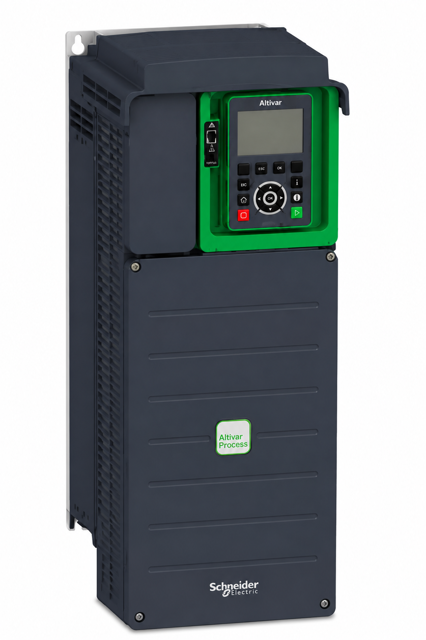

Schneider Electric Variable Speed Drive Altivar Process ATV660
Create an account to install this asset package.
Maintenance Plans for Schneider Electric Variable Speed Drive Model Altivar Process ATV660
Integrate maintenance plans directly into your work orders in MaintainX.
4 Yearly Dust Cange
DANGER: HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
Read and understand the instructions in Product Related Information chapter before performing any procedure in this chapter.
WARNING: HOT SURFACES
Ensure safety measures are in place
WARNING: INSUFFICIENT MAINTENANCE
Verify that maintenance activities are performed at specified intervals.
Dust Change Procedure
Change dust at least every 4 years.
Adjust maintenance intervals based on environmental and operating conditions.
Initial 3 Years Drives Fan Replacement
Safety Precautions
Read and understand the instructions in Product Related Information chapter
Ensure no contact with hot surfaces
Avoid flammable or heat-sensitive parts near hot surfaces
Verify product has cooled down sufficiently before handling
Perform a test run under maximum load conditions to verify sufficient heat dissipation
Fan Replacement
Replace the fan according to the catalog and instruction sheets on www.schneider-electric.com
Record the number of years since commissioning
35000 Hourly / 6 Yearly Fans Replacement
DANGER: HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
Read and understand the instructions in Product Related Information chapter before performing any procedure in this chapter.
Ensure that any contact with hot surfaces is avoided.
Do not allow flammable or heat-sensitive parts in the immediate vicinity of hot surfaces.
Verify that the product has sufficiently cooled down before handling it.
Verify that the heat dissipation is sufficient by performing a test run under maximum load conditions.
WARNING: INSUFFICIENT MAINTENANCE
Verify that the maintenance activities described below are performed at the specified intervals.
Fan Replacement
1 Yearly Variable Speed Drive Maintenance
DANGER: HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
Read and understand the instructions in Product Related Information chapter before performing any procedure in this chapter.
WARNING: HOT SURFACES
Ensure that any contact with hot surfaces is avoided.
Do not allow flammable or heat-sensitive parts in the immediate vicinity of hot surfaces.
Verify that the product has sufficiently cooled down before handling it.
Verify that the heat dissipation is sufficient by performing a test run under maximum load conditions.
WARNING: INSUFFICIENT MAINTENANCE
Verify that the maintenance activities described below are performed at the specified intervals.
Unlock
