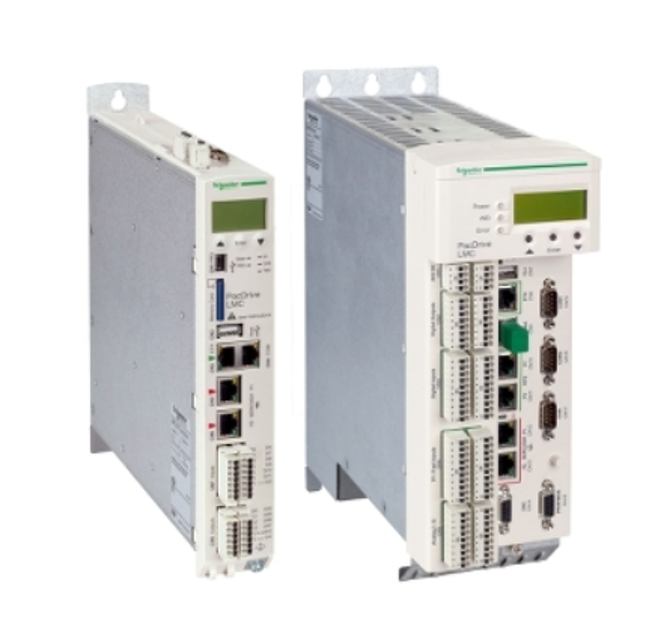

Schneider Electric Motion Controller PacDrive LMC 106
Create an account to install this asset package.
Maintenance Plans for Schneider Electric Motion Controller Model PacDrive LMC 106
Integrate maintenance plans directly into your work orders in MaintainX.
Motion Controller Cleaning
Preparation
De-energize Controller
Remove Controller
Cleaning Agent Compatibility Check
Conduct compatibility test with cleaning agent and component
Avoid using alkaline detergent
Avoid using chloride-containing cleaning agents
Cleaning Process
Blow out Controller with dry pressurized air (max. 1 bar / 14.5 PSI)
Controller Flash Disk Check
Establish Connection
Ensure connection between the Service-PC and the controller is established
Check Memory Layout
Select the Configuration tab in the device window of the concerned controller
Open the folder Memory & Disks
Record the value of RamDiskSize
Record the value of RamDiskFree
Handle Full Flash Disk
Is the flash disk full?
Device Replacement
Pre-Replacement Instructions
Ensure hardware revision status of the previous and new device are identical
Contact Schneider Electric if different hardware revision statuses exist
Do not open controller for commissioning or replacement
Controller Replacement
Disconnect cables from the Controller
Remove screws from the top and bottom of the housing
Remove the Controller and exchange the complete unit
Install new controller and tighten screws
Motion Controller Maintenance
Pre-maintenance Instructions
De-energize Device
De-energizing the System
Set main switch to 'OFF Position'
Prevent main switch from being switched back on
