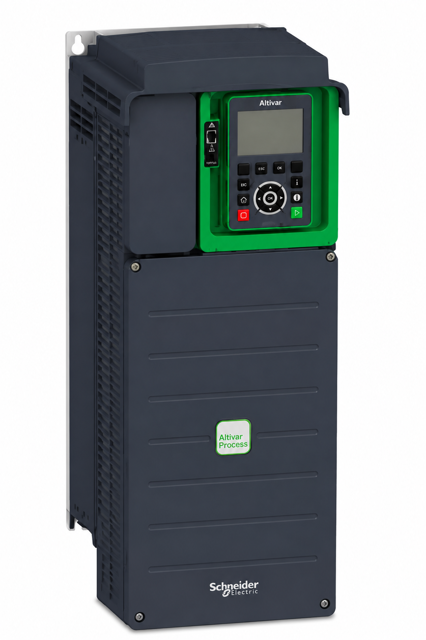

Schneider Electric Variable Speed Drive Altivar Process ATV630
Create an account to install this asset package.
Maintenance Plans for Schneider Electric Variable Speed Drive Model Altivar Process ATV630
Integrate maintenance plans directly into your work orders in MaintainX.
4 Yearly Dust Cange
DANGER: HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
Read and understand the instructions in Product Related Information chapter before performing any procedure in this chapter.
WARNING: HOT SURFACES
Ensure safety measures are in place
WARNING: INSUFFICIENT MAINTENANCE
Verify that maintenance activities are performed at specified intervals.
Dust Change Procedure
Change dust every 4 years.
Have you reduced the intervals between maintenance to adapt to environmental and operating conditions?
Initial 3 Years Drives Fan Replacement
Safety Precautions
Read and understand the instructions in Product Related Information chapter
Ensure no contact with hot surfaces
Avoid flammable or heat-sensitive parts near hot surfaces
Verify product has cooled down sufficiently before handling
Perform a test run under maximum load conditions to verify sufficient heat dissipation
Fan Replacement
Replace the fan as per the catalog and instruction sheets on www.schneider-electric.com
Record the number of years since commissioning
1 Yearly Variable Speed Drive Maintenance
DANGER: HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
Read and understand the instructions in Product Related Information chapter before performing any procedure in this chapter.
WARNING: HOT SURFACES
Ensure safety measures are in place
WARNING: INSUFFICIENT MAINTENANCE
Verify that maintenance activities are performed at specified intervals.
Inspection and Cleaning
Perform a visual inspection of all parts such as housing, HMI, control block, connections, etc.
Inspect terminals, connectors, screws, EMC plate for corrosion and clean if required.
35000 Hourly / 6 Yearly Fans Replacement
DANGER: HAZARD OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
Read and understand the instructions in Product Related Information chapter before performing any procedure in this chapter.
WARNING: HOT SURFACES
Ensure safety measures are in place
WARNING: INSUFFICIENT MAINTENANCE
Verify that maintenance activities are performed at specified intervals.
Fans Replacement
Replace the floor standing drives fan for power part and enclosure door fan.
Refer to catalog and instruction sheets on www.schneider-electric.com for replacement guidelines.
