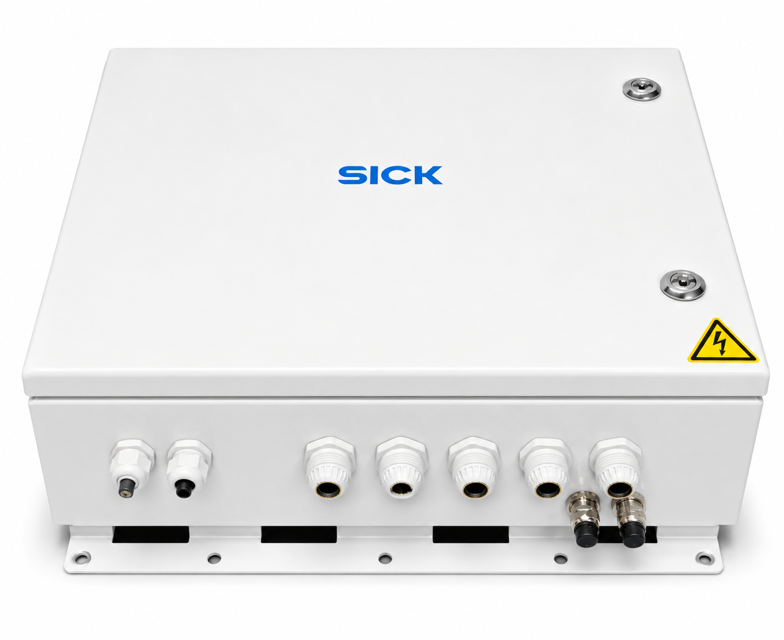

SICK Modular System Controller MSC800-2100

Need answers fast?
Explore the manual using AI.

View PDF Manual

Explore Maintenance Plans

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for SICK Modular System Controller MSC800-2100

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

SICK Modular System Controller MSC800-2100

Create an account to install this asset package.

Maintenance Plans for SICK Modular System Controller Model MSC800-2100

Integrate maintenance plans directly into your work orders in MaintainX.

Filter Mat Replacement

Preparation

Disconnect the MSC800 from the supply voltage

Ensure the fan wheels are safely shut down

Accessing Filter Mats

Loosen all covers of the air inlet and outlet openings on both sides of the cabinets

Fold covers downwards (maximum 70°)

Removing and Replacing Filter Mats

Release the lock by pulling the blue function logo upwards

Remove used filter mats and replace with new ones

Run this procedure

Modular System Controller Cleaning

Air Inlet and Outlet Cleaning

Use a soft brush to clear any dust from the air inlet openings on the sides of the cabinets.

Use a soft brush to clear any dust from the air outlet openings on the sides of the cabinets.

Filter Mat Inspection and Replacement

Check the condition of the filter mats on the air inlet and outlet openings

Replace contaminated or clogged filter mats immediately.

Cooling Efficiency Assurance

Ensure air inlet and outlet openings are clean for sufficient cooling of power supply units.

Run this procedure

Optical Effect Surfaces Cleaning

Preparation

Ensure the system is powered off

Gather cleaning materials (soft cloth, cleaning solution)

Cleaning Process

Inspect the optical effect surfaces for contamination

Apply cleaning solution to the soft cloth

Gently wipe the optical effect surfaces with the cloth

Verify that all contamination has been removed from the surfaces

Post-Cleaning Inspection

Run this procedure

Logic Unit Battery Replacement

NOTE: Risk of damage to the MSC800. Repair work on the MSC800 may only be performed by qualified and authorized service personnel from SICK AG.

Battery Replacement

Remove black plastic cover on the logic unit.

Remove the battery from the bracket and replace it with a new type CR2032 (3 V) battery.

Put the black plastic cover back in place.

Battery Disposal

Dispose of the old battery as hazardous waste as per the ROHS directives (Europe).

System Time Reset

Connect the MSC800 to the SOPAS-ET configuration software.

Run this procedure

Logic Unit Replacement

NOTE: Risk of damage to the MSC800. Repair work on the MSC800 may only be performed by qualified and authorized service personnel from SICK AG.

Removing connecting cables

Switch off the supply voltage to the MSC800

Disconnect all male cable connectors, female cable connectors, and pluggable terminals from the logic unit and pull them out

Replacing the MSC800-0000 logic unit

Remove the memory card (SD 1) with the saved parameter set from the defective logic unit

Insert the memory card into the opening (SD 1) in the new logic unit

Dismantle the defective logic unit from the cabinet of the MSC800

Install the new logic unit into the cabinet of the MSC800 in the reverse order

Run this procedure

Parts for SICK Modular System Controller MSC800-2100

Access the parts list for your equipment in MaintainX.

Part Name

Part Number

Read Cycle Sensor WL18-3 (Photoelectric Sensor) With Connecting Cable And Mounting Set

2034693

MLG Light Grid (Incl. Connecting Cable And Male Connector)

2041013

CAN Data Cable, Ø 6.8 mm, Shielded, Twisted Pair, With 5-Pin M12 Female Connector And Open End (Wire Ferrules), IP 65, PVC-Free, 2 x 0.32 mm², 2 x 0.25 mm², 5 m, First ID Sensor On MSC800 (Open End)

6021166

As No. 6021166, But Longer, 2 x 0.32 mm², 2 x 0.25 mm², 10 m, First ID Sensor On MSC800 (Open End)

6021175

CAN Data Cable, Shielded, Twisted Pair, With 5-Pin M12 Female Connector And 5-Pin M12 Male Connector, IP 65, PVC-Free, 1 m, ID Sensor To ID Sensor

6021164

Read Cycle Sensor WL18-3 (Photoelectric Sensor) With Connecting Cable And Mounting Set

2034693

MLG Light Grid (Incl. Connecting Cable And Male Connector)

2041013

6021166

As No. 6021166, But Longer, 2 x 0.32 mm², 2 x 0.25 mm², 10 m, First ID Sensor On MSC800 (Open End)

6021175
