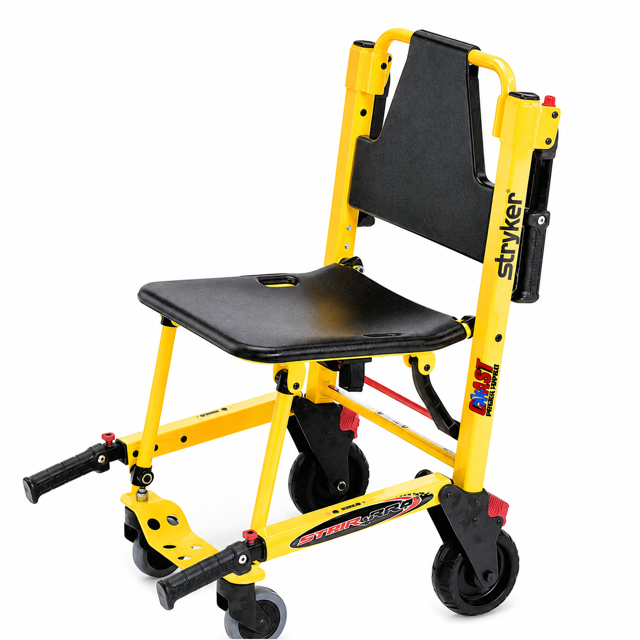

Stryker Patient Stair Chair 6251

Remove the screw from the center of the lock pedal

Remove the octagonal sleeve (B) from the pedal (A)

Rotate the octagonal sleeve to adjust locking force

Insert the octagonal sleeve (B) into the pedal (A)

Reinstall the screw into the center of the lock pedal

Verify that the pedal holds properly before returning the chair to service

If the pedal does not hold the wheel properly after adjustment, replace the wheel

Place the seat section on the frame, wrap it around the seat tube and fit the slots in the seat section over the clips on the underside of the seat tube. Ensure the 'shiny' side of the seat is on the inside.

Tip the chair on its back to allow access to the bottom of the seat tube.

Insert both ends of the front strap through the loops in the seat section.

Thread the end of the front strap through the buckle and pull it tight.

Thread the end of the back strap through the buckle and pull it tight.

Tip the chair back up on its wheels.

Ensure you have the following tools

Turn the chair upside down so it is resting on the seat frame and back frame

Using a 1/2” wrench and a 3/16” hex key, remove the button head cap screw, nut, spacers and wheel from the frame

Use the new fasteners provided to attach the new wheel to the frame

Repeat for the other wheel, if necessary

Select the call frequency for inspection

All fasteners secure (reference all assembly drawings)

All welds intact, not cracked or broken

No bent or broken tubing or sheet metal

All wheels secure and rolling properly

Select the appropriate cleaning agent

Ensure lodophor type disinfectants are not used

Avoid over saturation of the chair

Ensure the product does not stay wet longer than the chemical manufacturer’s guidelines

Wipe the chair with a cloth soaked in clean water after cleaning

Thoroughly dry the chair following cleaning
