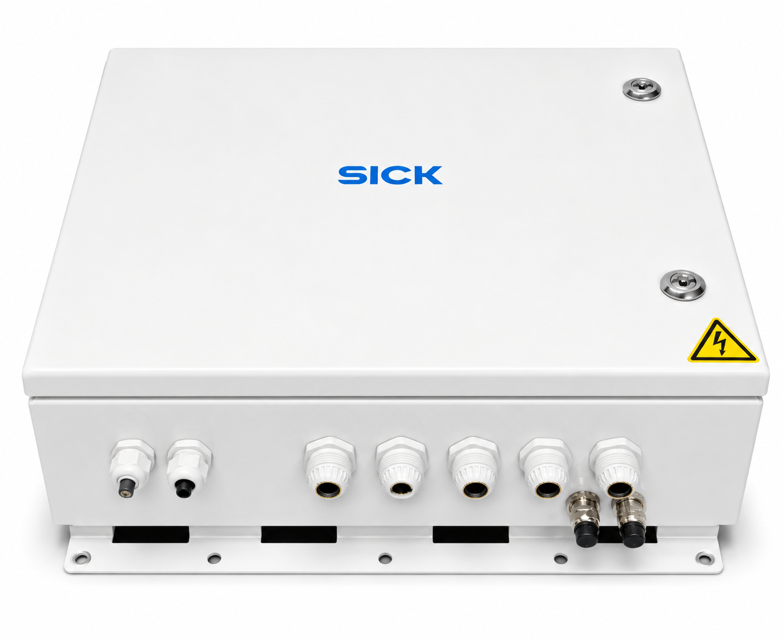

SICK Modular System Controller MSC800-1100

Need answers fast?
Explore the manual using AI.

View PDF Manual

Explore Maintenance Plans

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for SICK Modular System Controller MSC800-1100

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

SICK Modular System Controller MSC800-1100

Create an account to install this asset package.

Maintenance Plans for SICK Modular System Controller Model MSC800-1100

Integrate maintenance plans directly into your work orders in MaintainX.

Logic Unit Battery Replacement

Risk of damage to the MSC800

Confirm that repair work is performed by qualified and authorized service personnel from SICK AG

Battery Replacement

Remove black plastic cover on the logic unit

Remove the battery from the bracket and replace it with a new type CR2032 (3 V) battery

Put the black plastic cover back in place

Battery Disposal

Dispose of the old battery as hazardous waste as per the ROHS directives (Europe)

System Time Reset

Run this procedure

Optical Effect Surfaces Cleaning

Preparation

Ensure the system is powered off

Gather cleaning materials (soft cloth, cleaning solution)

Cleaning Process

Inspect the optical effect surfaces for contamination

Gently clean the optical effect surfaces with a soft cloth

Was the contamination removed successfully?

Post-Cleaning Verification

Power on the system

Run this procedure

Power Supply Unit Module Replacement

Safety Precautions

Ensure only qualified and authorized service personnel perform the repair

Comply with standard safety requirements for electrical plants

Power Supply Unit Module Replacement Steps

Switch off the supply voltage to the MSC800

Disconnect and remove all cables from the power supply unit module

Note the assignment of cables to connections

Dismantle the defective power supply unit module from the cabinet of the MSC800

Use a suitable screwdriver to slide the black clip forward on the bottom of the power supply unit module

Run this procedure

Logic Unit Replacement

NOTE: Risk of damage to the MSC800. Repair work on the MSC800 may only be performed by qualified and authorized service personnel from SICK AG.

Removing connecting cables

Switch off the supply voltage to the MSC800.

Disconnect all male cable connectors, female cable connectors, and pluggable terminals from the logic unit and pull them out.

Replacing the MSC800-0000 logic unit

Remove the memory card (SD 1) with the saved parameter set from the defective logic unit.

Insert the memory card into the opening (SD 1) in the new logic unit.

Dismantle the defective logic unit from the cabinet of the MSC800 by loosening the fixing screw on the left side and pushing the logic unit out to the right.

Install the new logic unit into the cabinet of the MSC800 in the reverse order.

Run this procedure

Parts for SICK Modular System Controller MSC800-1100

Access the parts list for your equipment in MaintainX.

Part Name

Part Number

Read Cycle Sensor WL18-3 (Photoelectric Sensor) With Connecting Cable And Mounting Set

2034693

MLG Light Grid (Incl. Connecting Cable And Male Connector)

2041013

CAN Data Cable, Ø 6.8 mm, Shielded, Twisted Pair, With 5-Pin M12 Female Connector And Open End (Wire Ferrules), IP 65, PVC-Free, 2 x 0.32 mm², 2 x 0.25 mm², 5 m, First ID Sensor On MSC800 (Open End)

6021166

As No. 6021166, But Longer, 2 x 0.32 mm², 2 x 0.25 mm², 10 m, First ID Sensor On MSC800 (Open End)

6021175

CAN Data Cable, Shielded, Twisted Pair, With 5-Pin M12 Female Connector And 5-Pin M12 Male Connector, IP 65, PVC-Free, 1 m, ID Sensor To ID Sensor

6021164

Read Cycle Sensor WL18-3 (Photoelectric Sensor) With Connecting Cable And Mounting Set

2034693

MLG Light Grid (Incl. Connecting Cable And Male Connector)

2041013

6021166

As No. 6021166, But Longer, 2 x 0.32 mm², 2 x 0.25 mm², 10 m, First ID Sensor On MSC800 (Open End)

6021175
