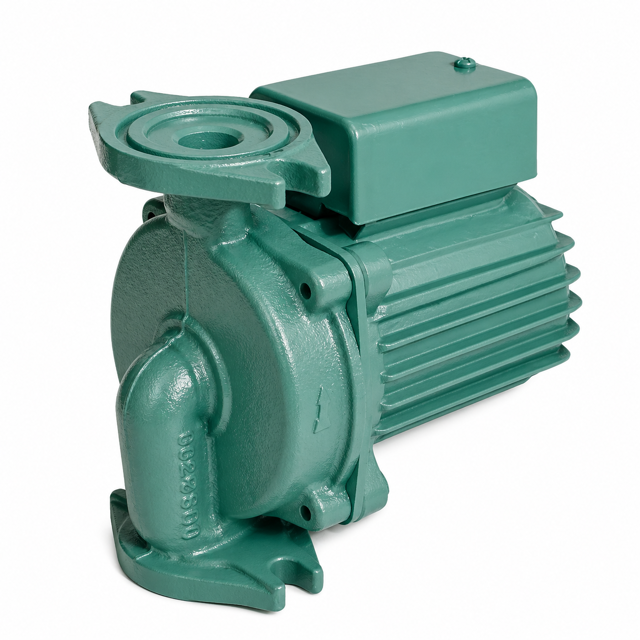

Taco Pump KS 3011

Ensure the pump is turned off and isolated from the power supply

Gather necessary tools and materials, including silicone grease

Seal Cover and Shaft Coupling Removal

Apply silicone grease on the OD of the shaft in the area between the seal and the end of the shaft

Draw off the seal rotating element from the shaft

Ensure all parts are free from burrs and damage

Insert stationary element of seal into seal cover

Avoid touching seal surfaces to prevent leakage

Ensure seal faces are not contaminated with fingerprints

Lubricate pump shaft end with silicone grease

Confirm no petroleum oil or grease is used

Close suction and discharge valves

Drain liquid from casing by removing drain plug

Remove coupler guard from both sides

Remove seal flush line, seal and coupling

Remove bolts holding cover/motor adapter to casing

Remove motor adapter and motor as one assembly from cover/casing

Assemble impeller key and impeller on shaft

Select bolt size for tightening

Does the impeller rotate freely by hand?

Apply gasket adhesive to gasket surface or cover

Place a new casing gasket against gasket surface and press against adhesive

Assemble cover, impeller shaft and impeller assembly into pump casing as one assembly

Is the gasket seated correctly?

Install motor adapter and motor as one assembly onto cover/casing assembly

Ensure all tools and materials are ready

Loosen all radial set screws on the seal rotating element

Remove the seal rotating element

Apply silicone grease on the OD of the shaft

Stationary Seal Element Removal
