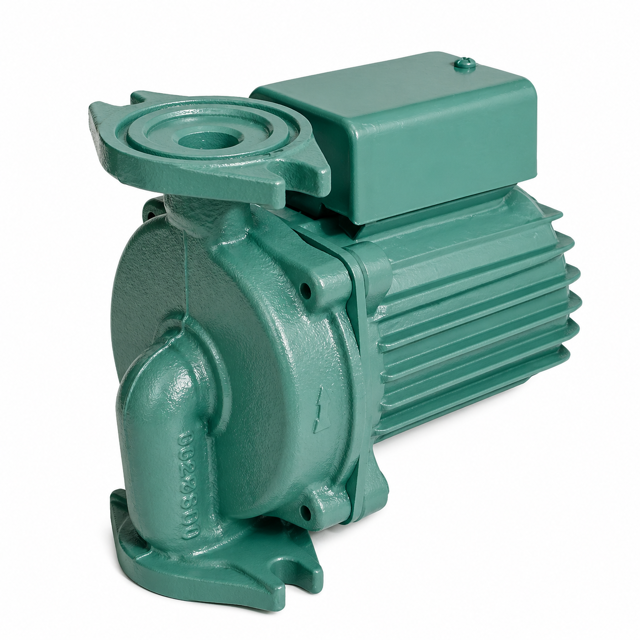

Taco Pump KS 3013

Enter the temperature of the motor bearings

Is the temperature of the motor bearings within the normal range?

Enter the suction gauge reading

Is the suction gauge reading normal?

Enter the discharge gauge reading

Is the discharge gauge reading normal?

Ensure all tools and materials are ready

Loosen all radial set screws on the seal rotating element

Remove the seal rotating element

Apply silicone grease on the OD of the shaft

Stationary Seal Element Removal

Ensure the pump is turned off and isolated from the power supply

Gather necessary tools and materials, including silicone grease

Seal Cover and Shaft Coupling Removal

Apply silicone grease on the OD of the shaft in the area between the seal and the end of the shaft

Draw off the seal rotating element from the shaft

Ensure all parts to be replaced are free from burrs and damage

Insert stationary element of seal into seal cover

Ensure the seal cover O-ring is properly seated in groove of the seal cover

Install retaining ring in seal cover to retain stationary seal

Place the seal cover back onto the pump cover and bolt in place

Ensure all parts are free from burrs and damage

Insert stationary element of seal into seal cover

Avoid touching seal surfaces to prevent leakage

Ensure seal faces are not contaminated with fingerprints

Lubricate pump shaft end with silicone grease

Avoid using petroleum oil or grease for lubrication

Place spring retainer and spring against retaining ring
