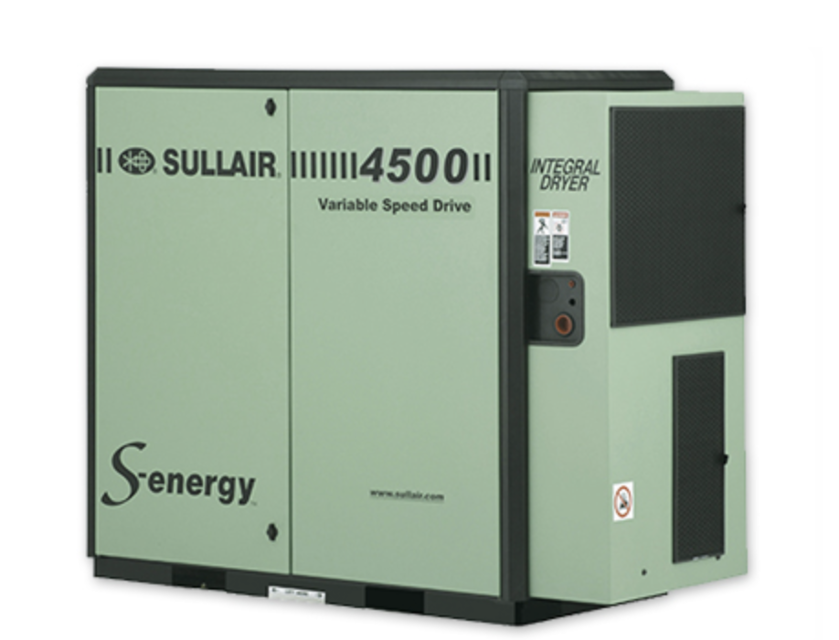

Sullair Industrial Air Compressor 4509-A

The compressor unit and motor are rigidly connected through the mounting adapter housing.

This arrangement makes coupling alignment unnecessary.

The coupling is a jaw type in shear. If the elastomeric (rubber) element requires replacement due to wear or damage, order a replacement element and perform the following steps:

1. Remove the protective grill from the adapter housing.

2. Loosen the retaining screw located on the outer sleeve. Slide the sleeve to one side, exposing the coupling element.

3. Unwrap the coupling element from the coupling jaws.

4. Install the new element by wrapping it around the jaws, engaging the cogs on the element into the jaws.

5. Reinstall the outer sleeve and secure by tightening the two screws to 45 in·lbs (5 Nm).

6. Reinstall the protective grill.;

Warning: Ensure the compressor is turned off and cooled down before performing any maintenance tasks.

Clean the return line strainer.

Sign off on the initial 50 hours compressor maintenance

Warning: This procedure requires trained personnel with PPE!

Is the strainer screen damaged?

If the screen is damaged, the strainer assembly must be replaced (P/N 241772).

Enter the part number of the replaced strainer assembly

Upload a photo of the cleaned/replaced strainer

Sign off on the strainer cleaning/replacement

Warning: Always ensure the compressor is turned off and fully depressurized before starting maintenance.

Is the compressor fitted with the standard solenoid condensate drain valve?

If the compressor is not fitted with the standard solenoid condensate drain valve, stop the procedure and report to the maintenance team.

Remove the knurled cap from the strainer.

If the screen is damaged, the strainer assembly must be replaced (P/N 02250171-245).

Warning: This procedure requires trained personnel with PPE!

Enter the machine's hour meter reading

Enter the date of the last hose replacement

If machine is air-cooled, order hose kit 02250171-102

If machine is water-cooled, order hose kit 02250171-103

Sign off on the hose replacement
