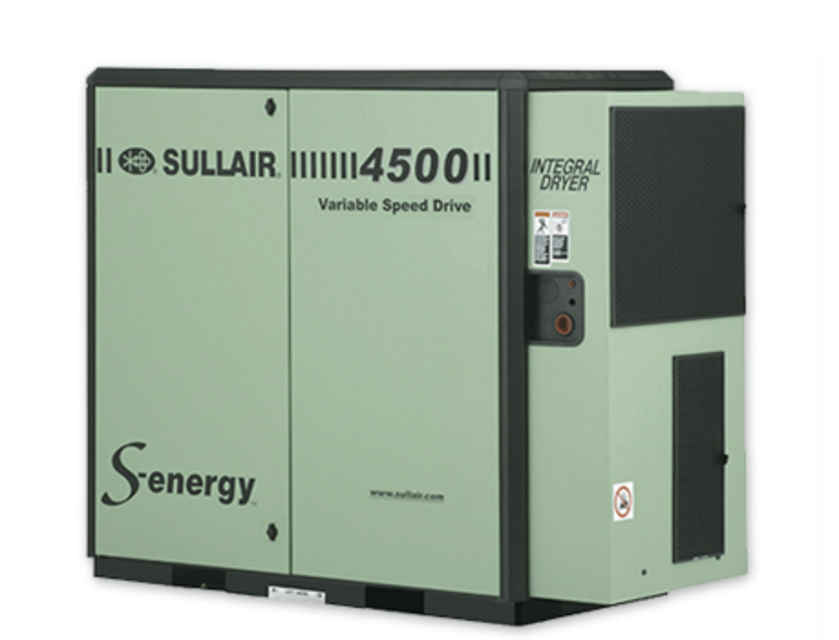

Sullair Industrial Air Compressor 4507P

Warning: Ensure the compressor is turned off and cooled down before performing any maintenance tasks.

Clean the return line strainer.

Sign off on the initial 50 hours compressor maintenance

Display on the WS Controller indicates the need for replacement?

FLUID FILTER ELEMENT REPLACEMENT

Use a wrench to remove the filter canister.

Remove and dispose of the filter element properly.

NOTE: Dispose of fluids in accordance with applicable federal, state, and local regulations.

Clean the gasket seating surface.

Apply a light film of fluid to the element seal.

CAUTION: Do not mix different types of lubricants. Mixing lubricants can cause malfunctions or compressor damage and will void the compressor’s warranty.

CAUTION: Contamination of compressor fluids with mineral oil or other fluids can cause foaming, filter plugging, or orifice line obstruction.

Sullair encourages its customers to participate in a fluid analysis program with the fluid suppliers. In some cases, the analysis results suggest a fluid change interval that differs from the User Manual. Contact a Sullair representative for details.

When performing a fluid change or topping off the fill, the proper level should be at half of the sight glass, with the machine off.

Mixing, changing, or adding other lubricants within the compressor unit may void the air-end warranty.

Change the compressor fluid using instructions shown in the Lubrication Guide.

Refer to Figure 3-1 for the fluid fill port location.

Sullair’s 4500P-7500 series compressors are filled and tested at the factory with Sullube lubricant.

Start the compressor and adjust the service valve to maintain service air pressure at approximately 1 psi over its rated pressure.

Turn the inlet valve regulator adjusting screw until air just begins to escape from the control air orifice, located at the bottom of the regulator.

Lock the adjusting screw in place with the locknut.

The regulator is now properly set.

Sign off on the pressure regulator adjustment

Warning: Always ensure the compressor is turned off and fully depressurized before starting maintenance.

Is the compressor fitted with the standard solenoid condensate drain valve?

If the compressor is not fitted with the standard solenoid condensate drain valve, stop the procedure and report to the maintenance team.

Remove the knurled cap from the strainer.

If the screen is damaged, the strainer assembly must be replaced (P/N 02250171-245).
