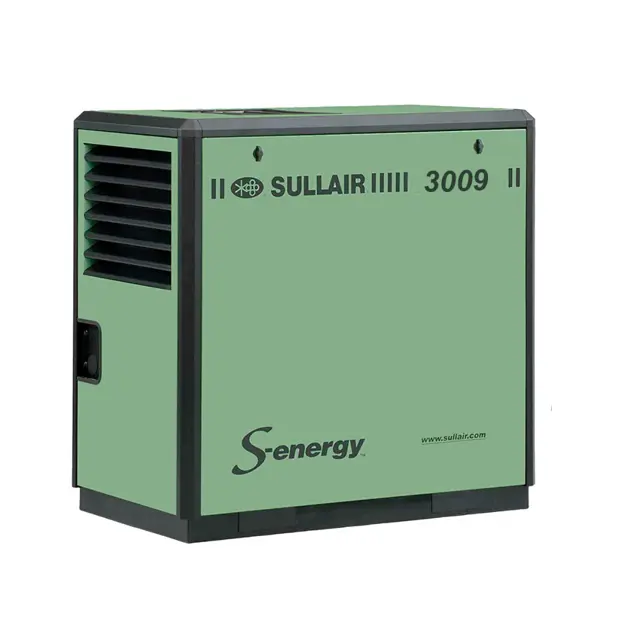

Sullair Industrial Air Compressor 3009PVB AC

Maintenance indicator shows red with the compressor running full load?

If the filter needs to be replaced, order a replacement element.

Clean exterior of air filter housing.

Rotate end cover counterclockwise and remove.

Remove air filter element by pulling it out of the housing.

Clean interior of housing using a damp cloth. DO NOT blow dirt out with compressed air.

At this time replace the element.

Reassemble in the reverse order of the disassembly.

Sign off on the air filter replacement

Warning: This procedure requires trained personnel with PPE!

Is the strainer screen damaged?

Enter the part number if the strainer assembly needs to be replaced

Upload a photo of the cleaned/replaced strainer

Sign off on the strainer cleaning

Warning: Always ensure the compressor is turned off and fully depressurized before starting maintenance.

Is the compressor turned off and fully depressurized?

Remove the knurled cap from the strainer

WS Controller indicates filter replacement

Fluid Filter Element Replacement

Filter canister removed with a wrench

Filter element removed and disposed

Light film of fluid applied to the element seal

Element installed into the filter canister

Tighten the canister to the filter head to 10 to 12 ft·lb (13.5 to 16.2 N·m)

Warning: Only trained personnel should perform this procedure.

Is the service air pressure approximately 1 psi over rated pressure?

Turn the inlet valve regulator adjusting screw

Does air just begin to escape from the control air orifice?

Lock the adjusting screw in place with the locknut.

Sign off on the pressure regulator adjustment
