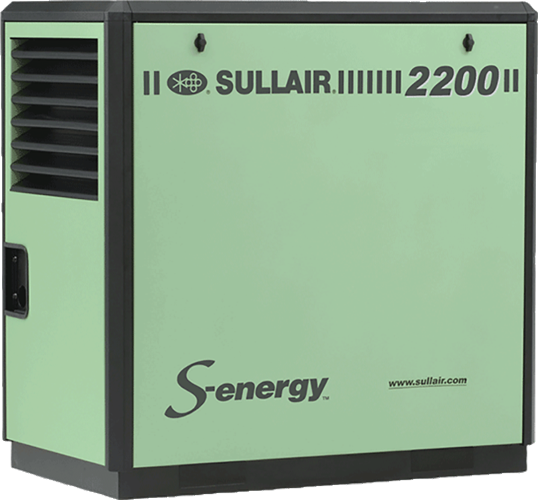

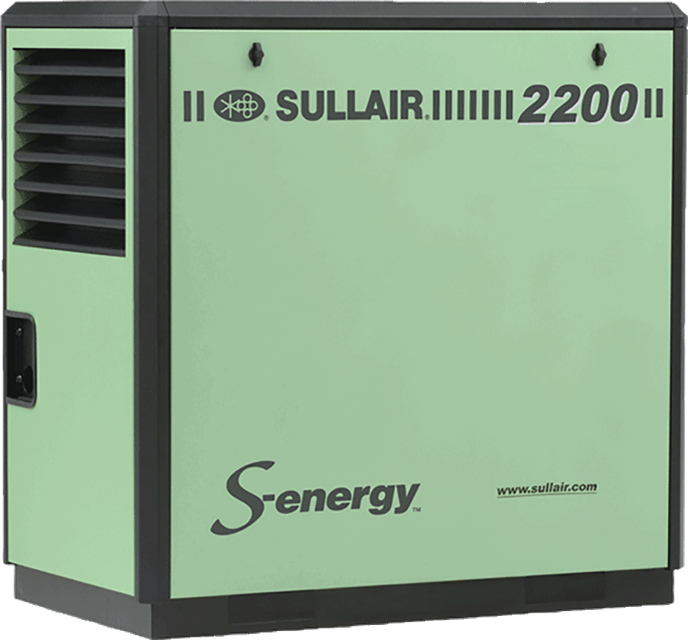

Sullair Industrial Air Compressor 2210

Maintenance indicator shows red with the compressor running full load?

If the filter needs to be replaced, order a replacement element.

Clean exterior of air filter housing.

Rotate end cover counterclockwise and remove.

Remove air filter element by pulling it out of the housing.

Clean interior of housing using a damp cloth. DO NOT blow dirt out with compressed air.

At this time replace the element.

Reassemble in the reverse order of the disassembly.

Sign off on the air filter replacement

Warning: Ensure the compressor is turned off and cooled down before performing any maintenance tasks.

Clean the return line strainer.

Upload a photo of the cleaned return line strainer.

Upload a photo of the cleaned return line orifice.

Sign off on the initial 50 hours compressor maintenance.

The fluid return/sight glass subassembly is attached to the side of the separator tank.

Fluid return/sight glass maintenance should be performed on a routine basis parallel to that of the fluid filter, or as indicated in Section 6.9: Troubleshooting—Introduction on page 63.

The maintenance on a fluid return/sight glass is mainly concerned with the condition of the filter assembly. Order filter assembly No. 02250117-782, and use the following instructions as a guide.

1. Disconnect the tube at the bottom of the sight glass.

2. Unscrew the sight glass assembly where the elbow fitting joins the strainer/filter.

3. Remove used filter assembly, and replace with new assembly.

4. Inspect and clean the orifice inside the sight glass blocks. The orifice must be removed with an Allen wrench.

5. Coat/lubricate the O-rings with silicone grease.

6. Reattach the connectors to the sight glass/orifice blocks.;

Warning: Always ensure the compressor is turned off and fully depressurized before starting maintenance.

Is the compressor turned off and fully depressurized?

Is the standard solenoid condensate drain valve fitted?

If the standard solenoid condensate drain valve is not fitted, stop the procedure and report to the maintenance team.

Remove the knurled cap from the strainer.

Is the strainer screen damaged?

Replace your fluid filter element under any of the following conditions, whichever occurs first:

1. As indicated by the WS Controller.

Fluid Filter Element Replacement

1. Using a wrench, remove the filter canister.

2. Remove and dispose of filter element. Observe all laws and regulations for filter disposal.

3. Clean gasket seating surface.

4. Apply a light film of fluid to the element seal.

5. Install the element into the filter canister.
