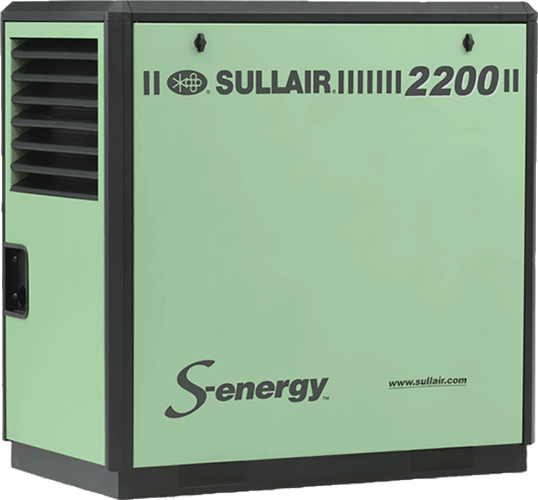

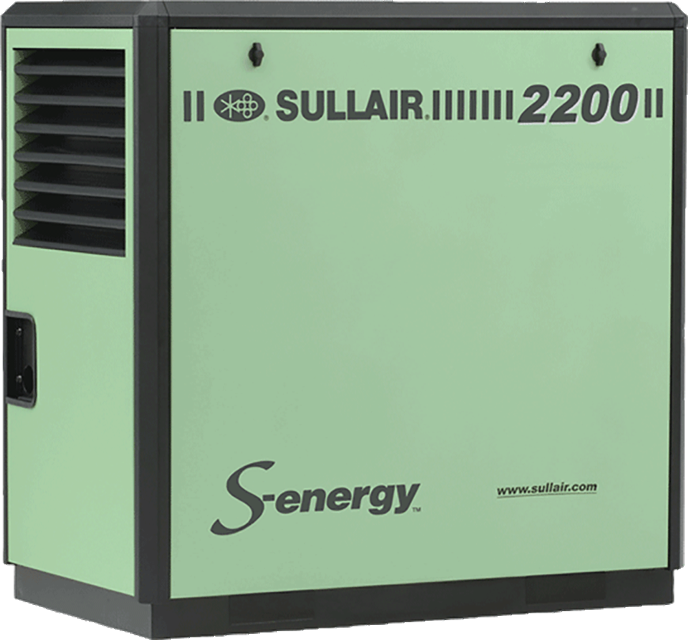

Sullair Industrial Air Compressor 2207

Warning: Ensure the compressor is turned off and fully depressurized before starting the procedure.

Is the compressor turned off and fully depressurized?

Was the knurled cap from the strainer successfully removed?

Was the strainer screen successfully removed?

Was the screen cleaned and reinstalled?

If yes, enter the part number for the new strainer assembly.

WS Controller indicates filter replacement

Fluid Filter Element Replacement

Filter canister removed with a wrench

Filter element removed and disposed

Light film of fluid applied to the element seal

Element installed into the filter canister

Tighten the canister to the filter head to 10 to 12 ft·lb (13.5 to 16.2 N·m)

Maintenance indicator shows red with the compressor running full load?

If the filter needs to be replaced, order a replacement element.

Clean exterior of air filter housing.

Rotate end cover counterclockwise and remove.

Remove air filter element by pulling it out of the housing.

Clean interior of housing using a damp cloth. DO NOT blow dirt out with compressed air.

At this time replace the element.

Reassemble in the reverse order of the disassembly.

Sign off on the air filter replacement

Warning: High-pressure hazard! Do not remove caps, plugs, and/or other components when compressor is running or pressurized. Stop compressor and relieve all internal pressure before doing so. Failure to comply could result in death or serious injury.

Fluid level in the separator/sump tank is adequate

If fluid level is low, note down the amount of fluid added

Is the addition of fluid becoming too frequent?

If the addition of fluid becomes too frequent, refer to Section 6.9: Troubleshooting—Introduction on page 61 under EXCESSIVE COMPRESSOR FLUID CONSUMPTION for a probable cause and remedy.

Controller display monitors the correct readings for their particular phase of operation

Compressor is running properly after warming up

Sign off on the daily compressor inspection

The fluid return/sight glass subassembly is attached to the side of the separator tank.

Fluid return/sight glass maintenance should be performed on a routine basis parallel to that of the fluid filter, or as indicated in Section 6.9: Troubleshooting—Introduction on page 63.

The maintenance on a fluid return/sight glass is mainly concerned with the condition of the filter assembly. Order filter assembly No. 02250117-782, and use the following instructions as a guide.

1. Disconnect the tube at the bottom of the sight glass.

2. Unscrew the sight glass assembly where the elbow fitting joins the strainer/filter.

3. Remove used filter assembly, and replace with new assembly.

4. Inspect and clean the orifice inside the sight glass blocks. The orifice must be removed with an Allen wrench.

5. Coat/lubricate the O-rings with silicone grease.

6. Reattach the connectors to the sight glass/orifice blocks.;
