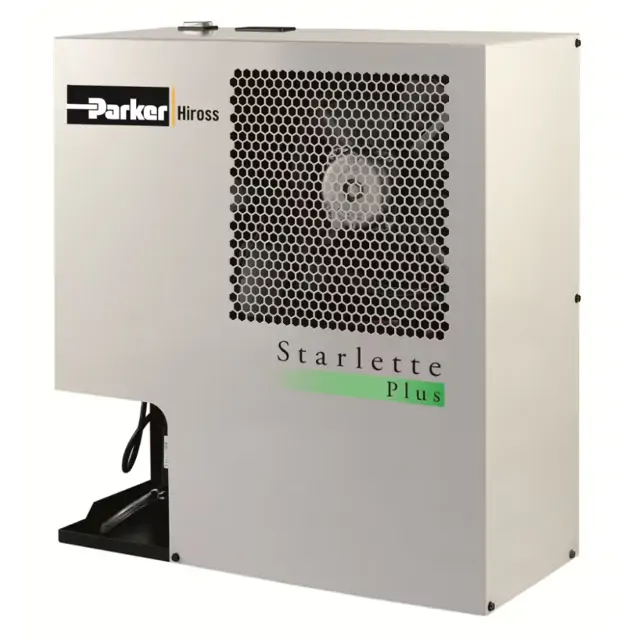

Parker Refrigeration Dryer SPL012
Create an account to install this asset package.
Maintenance Plans for Parker Refrigeration Dryer Model SPL012
Integrate maintenance plans directly into your work orders in MaintainX.
1 Weekly Dryer Check
Pre-maintenance safety checks
Ensure the pneumatic circuit is no longer pressurized
Disconnect the dryer from the main power supply
Use Manufacturer’s original spare parts
Contact qualified personnel in case of refrigerant leakage
Use Schrader valve only in case of machine malfunction
Check condensate drain
1 Daily Dryer Check
Pre-maintenance safety checks
Ensure the pneumatic circuit is no longer pressurized
Disconnect the dryer from the main power supply
Use Manufacturer’s original spare parts
Contact qualified personnel in case of refrigerant leakage
Use Schrader valve only in case of machine malfunction
Check POWER ON indicator is lit
Check control panel indicators
12 Months Dryer Check
Pre-maintenance Safety Checks
Ensure the pneumatic circuit is no longer pressurized
Disconnect the dryer from the main power supply
General Maintenance Guidelines
Use Manufacturer’s original spare parts
In case of refrigerant leakage, contact qualified and authorized personnel
Ensure Schrader valve is only used in case of machine malfunction
Dryer Maintenance
Depressurize the dryer and complete drain maintenance
4 Months Dryer Check
Pre-maintenance Safety Checks
Ensure the pneumatic circuit is no longer pressurized
Disconnect the dryer from the main power supply
Maintenance Steps
Clean condenser fins
Check electrical absorption
Important Notes
Use Manufacturer’s original spare parts
In case of refrigerant leakage, was qualified and authorized personnel contacted?
Parts for Parker Refrigeration Dryer SPL012
Access the parts list for your equipment in MaintainX.
Compressor Kit
398H473197
Fan Kit
398H473261
Automatic Expansion Valve Kit
398H473055
Refrigerant Condenser
398H114801
Evaporator/Separator/Air-Air-Heat-Exchanger
398H472158
Compressor Kit
398H473197
Fan Kit
398H473261
Automatic Expansion Valve Kit
398H473055
Refrigerant Condenser
398H114801
Evaporator/Separator/Air-Air-Heat-Exchanger
398H472158
Compressor Kit
398H473197
Fan Kit
398H473261
Automatic Expansion Valve Kit
398H473055
Refrigerant Condenser
398H114801
Evaporator/Separator/Air-Air-Heat-Exchanger
398H472158
