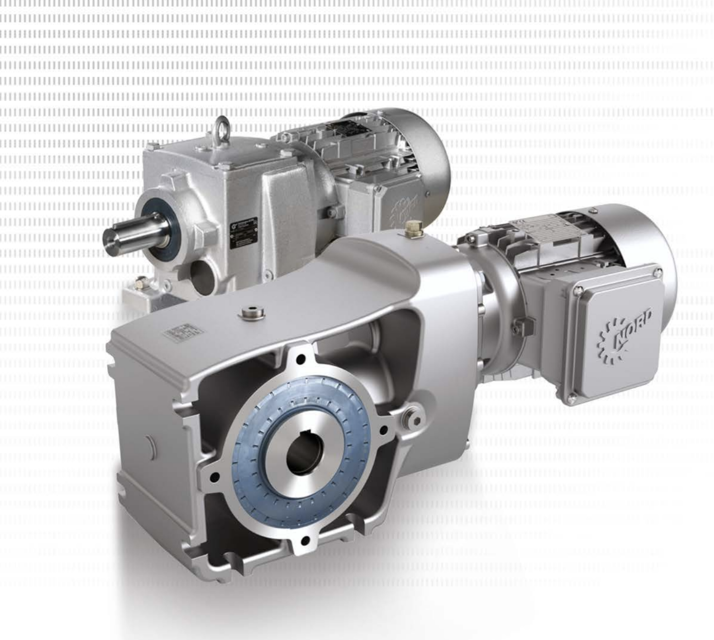

Nord Gear Unit SK 9016.1

Ensure the workshop is equipped with suitable equipment and qualified personnel.

Verify compliance with national regulations and laws.

Completely dismantle the gear unit.

Clean all gear unit components.

Check all gear unit components for damage

Ensure the gear unit is at a standstill and has cooled down

Provide protection against accidental activation

Is the oil temperature between 10 °C to 40 °C?

Oil Level Check for Gear Units with Oil Level Screw

Unscrew the oil level screw corresponding to the mounting position

Did a small amount of oil escape during the first oil level check?

Is the oil level at the lower edge of the oil level hole?

Adjust the oil level with the corresponding oil type if necessary

Perform visual inspection of the gear unit

Inspect rubber buffers for damage

Inspect hoses for leaks, cuts, tears, porous areas, and chafing

Check for unusual running noises

Re-grease/remove excess grease for applicable options (W, VL2, VL3, AI, AN)

Ensure operating temperature is up to 80 °C

Use protective equipment to prevent burns

Place a collection vessel under the oil drain screw or the oil drain tap

Screw out the oil level screw (if present) and the oil drain screw

Screw out the screw plug with dipstick if using an oil reservoir tank

Completely drain the oil from the gear unit

Identify the correct lubricant sensor part number

Screw in the new lubricant sensor

Remove excess grease from the adapter

Activate the full lubricant sensor (see chapter 4.3 'Activating the automatic lubricant dispenser')
