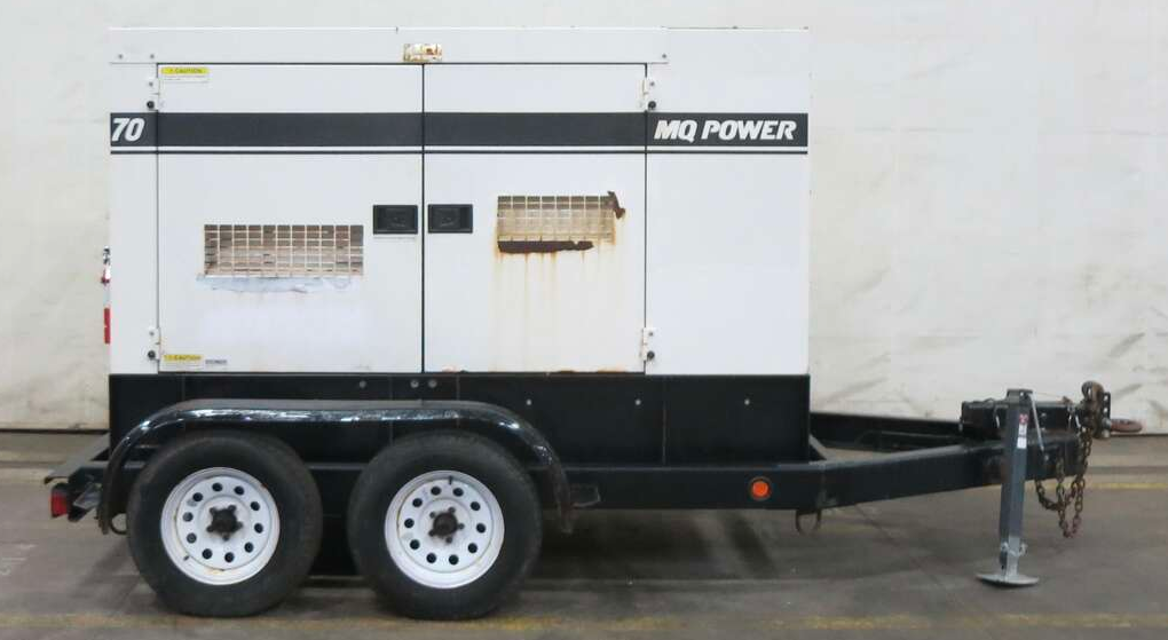

Multiquip Portable Generator DCA70SSJU4I

Warning: Allow engine to cool when flushing out radiator. Flushing the radiator while hot could cause serious burns from water or steam.

Open both cocks located at the crankcase side and at the lower part of the radiator and drain coolant. Open the radiator cap while draining.

Remove the overflow tank and drain.

Check hoses for softening and kinks.

Check clamps for signs of leakage.

Tighten both cocks and replace the overflow tank.

Replace with coolant as recommended by the engine manufacturer.

Flush the radiator by running clean tap water through radiator until signs of rust and dirt are removed. DO NOT clean radiator core with any objects, such as a screwdriver.

Check Engine Oil and Coolant Levels

Check Fuel Filter/Water Separator Bowl

Replace the fuel filter cartridge with new one every 500 hours or so.

Loosen the drain plug at the lower top of the fuel filter. Drain the fuel in the fuel body together with the mixed water. DO NOT spill the fuel during disassembly.

Warning: This maintenance check requires trained personnel with PPE!

Check and Adjust Engine Valve Clearance

Inspect Diesel Particulate Filter (DPF) *2

Expectation for minimal service interval will be at least 3000 hrs. based on engine power. However, actual service should take place when indicated by diagnostic gauge.

Please contact nearest authorized Multiquip Service Center for DPF Cleaning.

Sign off on the generator maintenance

Warning: Ensure the engine is off and cool before starting the procedure

Film of oil applied to the gasket on the new oil filter

Engine run and checked for leaks

Engine oil level after replacement

Excessive oil cleaned from engine

Sign off on the oil filter replacement
