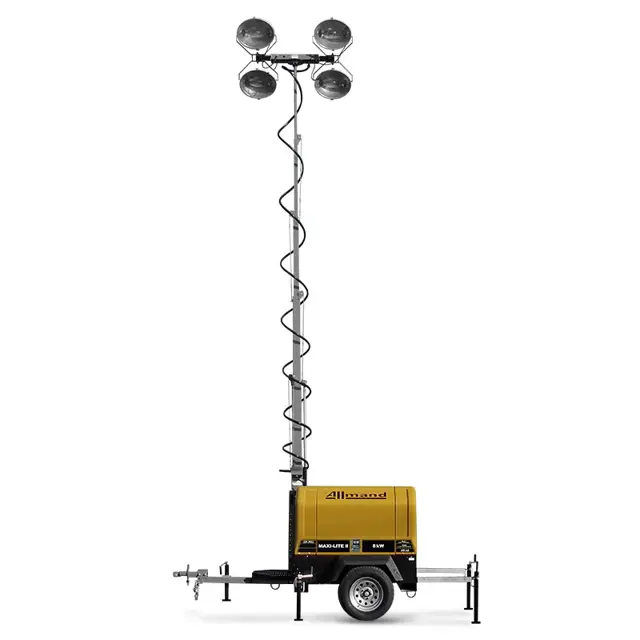

Allmand Bros Light Tower Trailer Rig Spec

Warning: Use caution when using compressed air or water/ steam pressure washers. Do not pressure-clean electrical components, because it may damage electrical components.

Cleaned the light tower and removed all dust, dirt, or other foreign material?

Removed dust, dirt, and debris from the radiator?

Inspected and cleaned the cooling air intake and exhaust louvers of the enclosure. Removed dirt or any buildup that may restrict the cooling air flow?

Inspected and cleaned all engine linkages so they operate properly?

Sign off on the cleaning procedure

TOWING HAZARD! Never tow the trailer with lights that don’t work.

Trailer lights and wiring harness checked for damage or wear

Upload a photo of the wiring harness

Wiring harness is secured to the trailer and does not hang down onto the ground

Tail light housing assemblies checked for damage or leaks

Upload a photo of the tail light housing assemblies

Used silicone or rubber sealant to seal the lens or wiring harness, if needed

Replaced the housing assembly if it can’t be sealed

Used electrical grease to protect the sockets and prevent corrosion

Use a high-quality engine oil of API (American Petroleum Institute) service class CC/CD/CE. Refer to the Engine Operator’s Manual for detailed engine oil specifications and service procedures. All models are equipped with remote oil drains.

Start the engine and let it warm up.

Place a drain pan under the remote oil drain.

Remove the oil drain plug and let the oil drain into the pan until empty.

Replace the oil drain plug and dispose of the old oil in a responsible manner.

Remove the oil fill cap from the top of the engine.

Add clean oil per the stated capacity.

Start the engine and let it warm up, then check for leaks.

Follow these maintenance and care guidelines in addition to those scheduled by your shop equipment maintenance schedule.

MAINTAINING THE TRAILER FRAME To maintain the trailer frame:

1 Check the coupler operation. Also check for corrosion or damage.; Repair or replace as needed.

2 Inspect the lifting bar for corrosion or damage and repair or replace as needed.

3 Inspect the trailer frame and body panels for rust, nicks, and chips. Use the proper touch-up paint to touch up nicks or scratches.

Contact your dealer for additional information.

4 Inspect the axle, springs, and undercarriage for wear and damage. Repair or replace as needed.

5 Inspect the outrigger bars, front and rear stabilizer jacks, and locking mechanisms for proper operation, wear, and damage. Repair or replace as needed.

6 Inspect the safety chains for wear and corrosion damage. Repair or replace as needed.;

Refer to the Generator Operator’s Manual for all general scheduled maintenance procedures.

The ballast panel is located on the left, front side of the light tower trailer.

The ballast panel can be accessed by removing the left side panel, then removing the internal access cover.

The ballast panel contains the four tower light lamp ballasts and capacitors.

The safety messages that follow have WARNING level electrocution hazards.

Only qualified electricians should service or perform replacement procedures.

Ballasts and capacitors are capable of discharging high voltage.

Always use appropriate personal safety clothing and gear when servicing electrical equipment.
