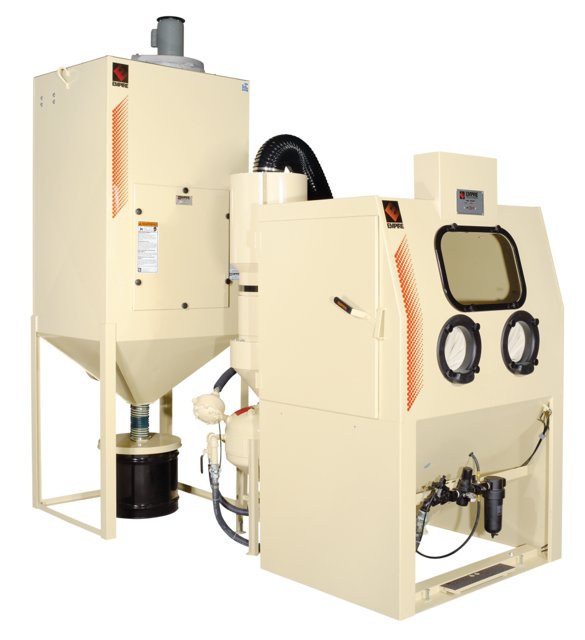

Empire Abrasive Equipment Pro-Finish Cabinet System 6060

Step 1: Check the condition of the media. If the media is contaminated or broken down into dust, thoroughly clean the inside of the cabinet and recovery system and reload with new media.

Step 2: Adjust the reclaimer tuning band if you observe a dusty condition. See section 3.6 Equipment Adjustments.

Step 3: Clean the filter bag or shake the dust collector bags after every 2-4 hours of operation.

A. For a single dust bag, remove the bottom bag clip and shake the accumulated dust through the bag bottom into an appropriate container.

B. For systems equipped with a (baghouse) dust collectors, turn off he cabinet power switch anc emove the dust from the bags bj pressing the bag-shake button 15 to 20 times.

C. Cartridge collector (CDC), empty the dust drum when 2/3 full. Dispose of the waste properly.

Step 4: Check light bulbs and gloves

Step 5: Remove debris from the reclaimer screen.

Repeat the daily maintenance procedures

Inspect all media-carrying hoses for wear by feeling along the length of the hose for soft spots. Hoses with soft spots should be replaced

Check the nozzle for wear. When the nozzle is worn 1/8\ oversize

On suction systems, check the air jet for wear

Loosen the set screw in the side of the gun body and remove the air jet

If the air jet shows wear, rotate it 90° and reinsert it into the gun

IMPORTANT: If an air jet is allowed to wear completely through, it will cause premature wear of the gun body and nozzle

Step 3: Clean the filter bag or shake the dust collector bags after every 2-4 hours of operation.

A. For a single dust bag, remove the bottom bag clip and shake the accumulated dust through the bag bottom into an appropriate container.

B. For systems equipped with a (baghouse) dust collectors, turn off the cabinet power switch and remove the dust from the bags by pressing the bag-shake button 15 to 20 times.

C. Cartridge collector (CDC), empty the dust drum when 2/3 full. Dispose of the waste properly.;
