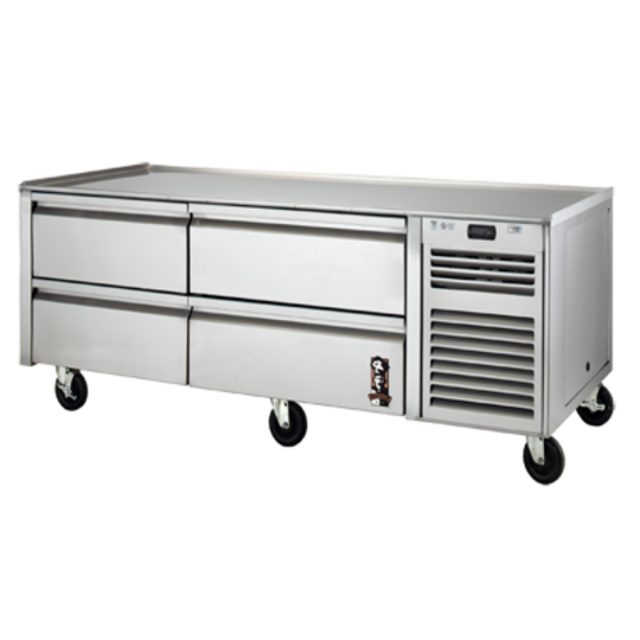

Montague Refrigerated Chef Base Unit RB-36-SC

Remove the louvered panel from the front of the unit

Lift access panel up and pull outward to remove

Remove and Clean the Condenser Filter

Remove the magnetic condenser filter by pulling the filter framing away from the condenser

Do you have an extra condenser filter on hand?

Disconnect electrical power supply before cleaning any parts of the unit

Remove the drawer from the drawer frame modules

Use warm soapy water to clean storage cabinet doors

Ensure cleaning materials do not contain the following

Rinse thoroughly and dry with a clean soft cloth

Rub in the same direction as the grain pattern of the stainless steel

Remove all product and pans from the base cabinet

Leave the unit to set for 24 hours with all of the drawers removed

Perform the monthly case cleaning

Pull drawer open until it stops

Pull back on slide locks on left and right side retractable slides

Lift drawer slightly while pulling back until drawer assembly is removed

Was the drawer assembly removed successfully?

Remove gasket by pulling from retaining strip

Install new gasket by snapping lip of gasket into retaining strip of door on all sides

Press gasket into retaining strip

Select cleaning agent for routine cleaning

Sponge with cloth, then rinse with clear water and wipe dry

Select cleaning agent for smears and fingerprints

Rub with cloth as directed on the package

Tenacious Deposits, Rusty Discolorations, Industrial Atmospheric Stains

Select cleaning agent for tenacious deposits and stains

Swab and soak with clean cloth, let stand 15 minutes or more according to directions on package, then rinse dry
