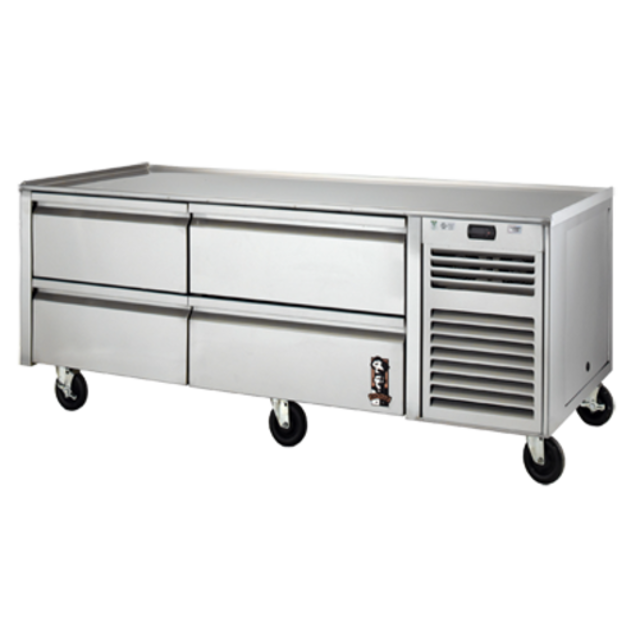

Montague Refrigerated Chef Base Unit FB-36-SC

WARNING: DISCONNECT ELECTRICAL POWER SUPPLY BEFORE CLEANING ANY PART OF THE UNIT

Disconnect electrical power supply

Remove louvered panel by lifting it up and pulling the bottom out

Clean dirt and lint from the condenser coil using a vacuum cleaner or soft brush

Use an approved condenser degreaser to remove grease

Reassembly and Power Restoration

Replace louvered panel by installing top of the panel into track and pushing in the bottom so it fits inside the opening

Sponge with cloth, then rinse with clear water and wipe dry

Rub with cloth as directed on the package

Tenacious Deposits, Rusty Discolorations, Industrial Atmospheric Stains

Swab and soak with clean cloth, let stand 15 minutes or more according to directions on package, then rinse dry

Ensure the service is performed by an authorized & trained service technician

Remove screws mounting the condensing guard to the condenser cabinet

Remove 3 screws from the condensing unit base (2 in front, 1 at right rear)

Retract the condensing unit from the condenser cabinet on a sliding shelf

Remove the right side panel if accessible

Use vacuum and soft brush to dislodge and remove dust on and in the coil

Remove the louvered panel from the front of the unit

Lift access panel up and pull outward to remove

Remove and Clean the Condenser Filter

Remove the magnetic condenser filter by pulling the filter framing away from the condenser

Do you have an extra condenser filter on hand?

Disconnect electrical power supply before cleaning any parts of the unit

Remove the drawer from the drawer frame modules

Use warm soapy water to clean storage cabinet doors

Ensure cleaning materials do not contain the following

Rinse thoroughly and dry with a clean soft cloth

Rub in the same direction as the grain pattern of the stainless steel
