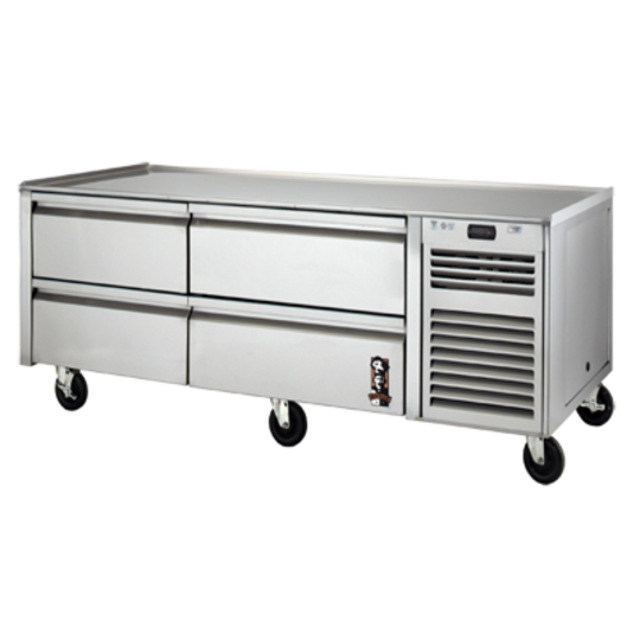

Montague Refrigerated Chef Base Unit RB-72-SC

Select cleaning agent for routine cleaning

Sponge with cloth, then rinse with clear water and wipe dry

Select cleaning agent for smears and fingerprints

Rub with cloth as directed on the package

Tenacious Deposits, Rusty Discolorations, Industrial Atmospheric Stains

Select cleaning agent for tenacious deposits and stains

Swab and soak with clean cloth, let stand 15 minutes or more according to directions on package, then rinse dry

Remove all product and pans from the base cabinet

Leave the unit to set for 24 hours with all of the drawers removed

Perform the monthly case cleaning

Reinstall the drawers and turn the power to the unit back on

Check for the following gasket issues

Is the gasket creating a flush seal when the drawers are closed?

Pull drawer open until it stops

Pull back on slide locks on left and right side retractable slides

Lift drawer slightly while pulling back until drawer assembly is removed

Remove gasket by pulling from retaining strip

Install new gasket by snapping lip of gasket into retaining strip of door on all sides

Remove the louvered panel from the front of the unit

Lift access panel up and pull outward to remove

Remove the magnetic condenser filter by pulling the filter framing away from the condenser

Clean the condenser filter thoroughly

Do you have an extra condenser filter on hand?

Ensure the condenser unit is powered off

Gather necessary tools and materials

Remove screws from condensing guard

Retract condensing unit from cabinet

Remove right side panel if necessary
