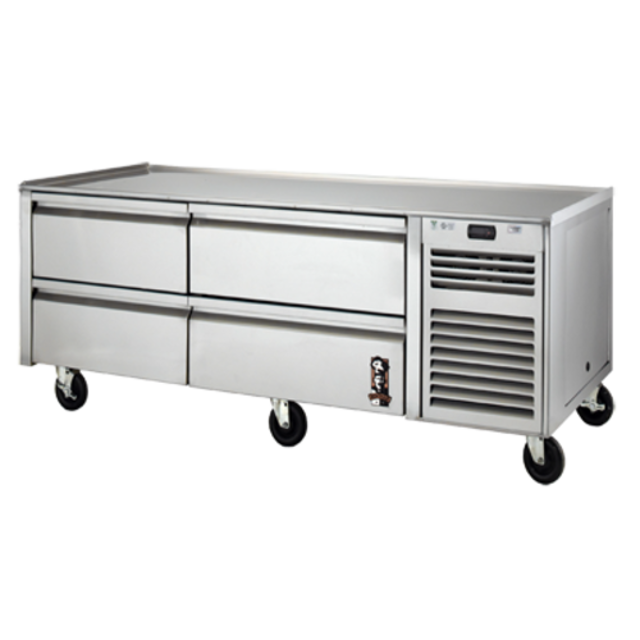

Montague Refrigerated Chef Base Unit RB-84-SC

Check for the following gasket issues

Is the gasket creating a flush seal when the drawers are closed?

Pull drawer open until it stops

Pull back on slide locks on left and right side retractable slides

Lift drawer slightly while pulling back until drawer assembly is removed

Remove gasket by pulling (by hand) from retaining strip

Install new gasket by securely snapping lip of gasket into retaining strip of door on all sides

Remove all product and pans from the base cabinet

Leave the unit to set for 24 hours with all of the drawers removed

Perform the monthly case cleaning

Turn the power to the unit back on

Select cleaning agent for routine cleaning

Sponge with cloth, then rinse with clear water and wipe dry

Select cleaning agent for smears and fingerprints

Rub with cloth as directed on the package

Tenacious Deposits, Rusty Discolorations, Industrial Atmospheric Stains

Select cleaning agent for tenacious deposits and stains

Swab and soak with clean cloth, let stand 15 minutes or more according to directions on package, then rinse dry

WARNING: DISCONNECT ELECTRICAL POWER SUPPLY BEFORE CLEANING ANY PART OF THE UNIT

Disconnect electrical power supply

Remove louvered panel by lifting it up and pulling the bottom out

Clean dirt and lint from the condenser coil using a vacuum cleaner or soft brush

Use an approved condenser degreaser to remove grease

Reassembly and Power Restoration

Disconnect electrical power supply before cleaning any parts of the unit

Remove the drawer from the drawer frame modules

Use warm soapy water to clean storage cabinet doors

Ensure cleaning materials do not contain the following

Rinse thoroughly and dry with a clean soft cloth

Rub in the same direction as the grain pattern of the stainless steel
