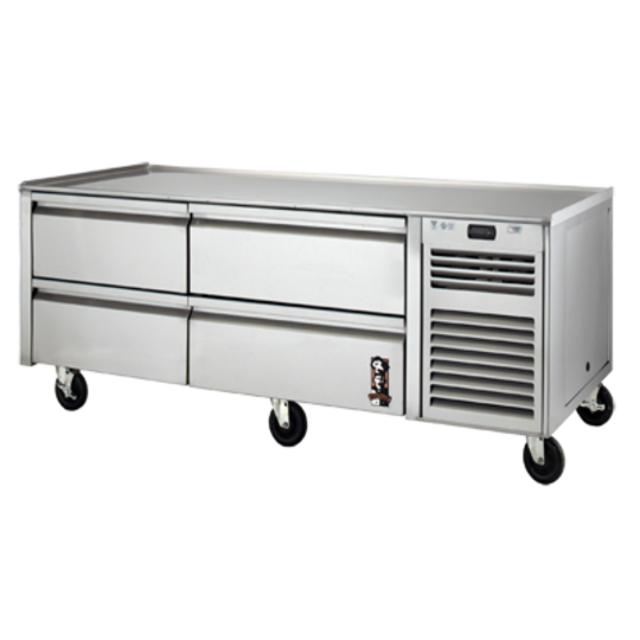

Montague Refrigerated Chef Base Unit RB-48-SC

Disconnect electrical power supply before cleaning any parts of the unit

Remove the drawer from the drawer frame modules

Use warm soapy water to clean storage cabinet doors

Ensure cleaning materials do not contain

Rinse thoroughly and dry with a clean soft cloth

Rub in the same direction as the grain pattern of the stainless steel

Ensure the service is performed by an authorized & trained service technician

Remove screws mounting the condensing guard to the condenser cabinet

Remove 3 screws from the condensing unit base (2 in front, 1 at right rear)

Retract the condensing unit from the condenser cabinet on a sliding shelf

Remove the right side panel if accessible

Use vacuum and soft brush to dislodge and remove dust on and in the coil

Remove the louvered panel from the front of the unit

Lift access panel up and pull outward to remove

Remove the magnetic condenser filter by pulling the filter framing away from the condenser

Clean the condenser filter thoroughly

Do you have an extra condenser filter on hand?

Remove all product and pans from the base cabinet

Leave the unit to set for 24 hours with all of the drawers removed

Perform the monthly case cleaning

Turn the power to the unit back on

Is the gasket creating a flush seal when the drawers are closed?

Pull drawer open until it stops

Pull back on slide locks on left and right side retractable slides

Lift drawer slightly while pulling back until drawer assembly is removed

Remove gasket by pulling from retaining strip

Install new gasket by snapping lip of gasket into retaining strip of door on all sides
