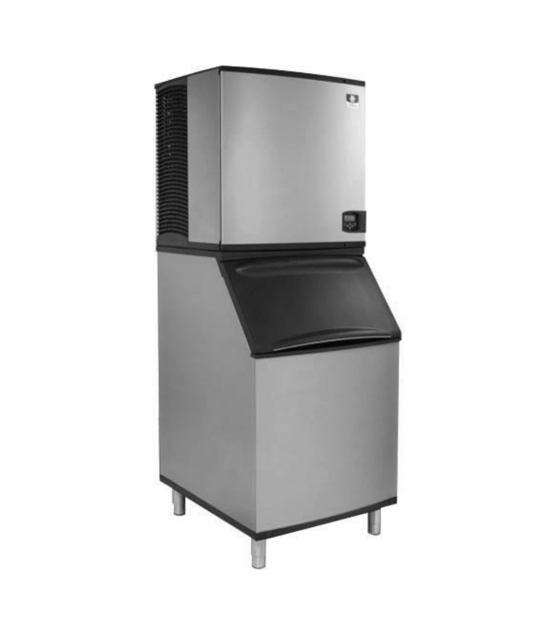

Manitowoc Refrigeration Equipment IY0454A

Mix a solution of Manitowoc ice machine cleaner and water (2 ounces of cleaner to 16 ounces of water) in a container

Clean all probe surfaces including all plastic parts (do not use abrasives)

Thoroughly rinse probes with clean water

Ensure the area around the ice machine is clear of obstacles.

Gather cleaning materials: damp cloth, mild dish soap, clean soft cloth.

Wipe surfaces with a damp cloth rinsed in water to remove dust and dirt.

Is there any greasy residue remaining?

If greasy residue persists, use a damp cloth rinsed in a mild dish soap and water solution.

Wipe dry with a clean, soft cloth.

Gently flex the curtain in the center and remove it from the right side

Depress tabs on right and left side of the water trough

Allow front of water trough to drop as you pull forward to disengage the rear pins

Pull the water level probe straight down to disengage

Lower the water level probe until the wiring connector is visible

Preparation and Safety Precautions

Wear rubber gloves and safety goggles (and/or face shield) when handling Ice Machine Cleaner or Sanitizer.

Ensure ice machine top cover is removed if necessary for easier access.

Ensure no ice is on the evaporator during the clean/sanitize cycle.

Remove all ice from the bin/dispenser.

Press the clean switch and wait until the water trough refills and the display indicates add solution.

Add the proper amount of ice machine cleaner based on model.

Wait until the clean cycle is complete (approximately 24 minutes) and disconnect power to the ice machine.

Ensure you have read and understood the manual instructions

Verify that maintenance procedures are not covered by the warranty

Check if the ice machine requires more frequent cleaning and sanitizing

Consult a qualified service company if necessary to test water quality

Wear rubber gloves and safety goggles (and/or face shield)

Ensure Manitowoc Ice Machine Cleaner and Sanitizer are used

Do not mix Cleaner and Sanitizer solutions together
