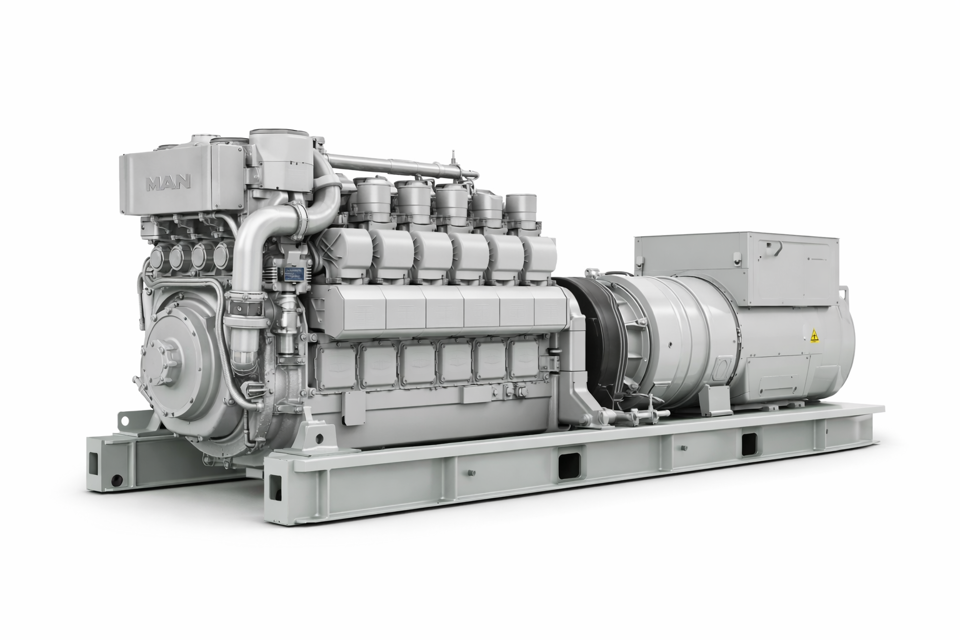

MAN Diesel & Turbo SE Generator Set 8L23/30S

Enter the pH value of the condensate

Enter the conductivity of the condensate

Is the pH value within the acceptable range?

Is the conductivity within the acceptable range?

Examine the piping system for leaks

Retighten all bolts and nuts in the piping system

Move all valves and cocks in the piping system

Lubricate valve spindles with graphite or similar

Connection and Instrument Check

Check flexible connections for leaks and damages

Condensate Water Quality Measurements

Measure the hardness of the condensate water

Measure the iron content in the condensate water

Measure the additive concentration in the condensate water

Document the measured values for hardness, iron content, and additive concentration

Are all measured values within the acceptable range?

Check for indications of oil content in water

Measure the concentration of chemical additives

Is the concentration of chemical additives within the acceptable range?

Document the results of the additive concentration test

Send a coolant sample for integrated analysis every 2 to 6 months

Coolant Replacement and Cleaning

Is the coolant older than 3 years?

Ensure all necessary equipment is available

Is the coolant within the specified parameters for water hardness, pH, and chloride content?

Record any deviations from the specified parameters
