The Lochinvar Fire Tube Boiler FTX850N is a high-efficiency heating solution designed for commercial applications. This model features advanced technology for optimal performance and reliability, ensuring effective heating while minimizing energy consumption. Ideal for various industrial settings, it provides robust operation and ease of maintenance.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Lochinvar Fire Tube Boiler FTX850N

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

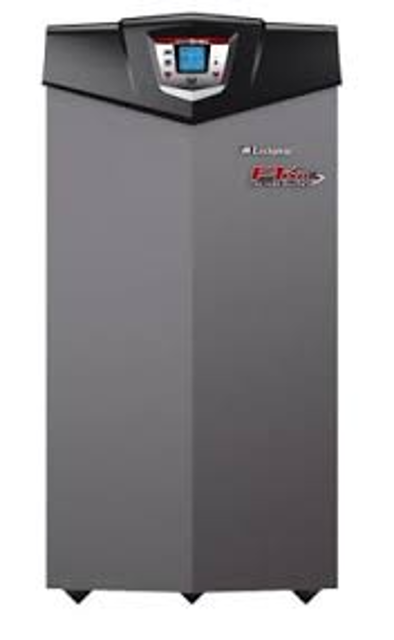

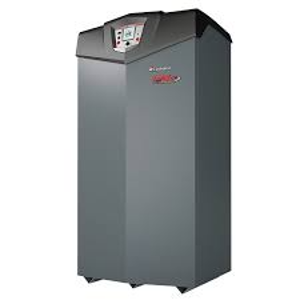

Lochinvar Fire Tube Boiler FTX850N

Create an account to install this asset package.

Maintenance Plans for Lochinvar Fire Tube Boiler Model FTX850N

Integrate maintenance plans directly into your work orders in MaintainX.

Ignition and Flame Sense Electrode Inspection

Warning: Ensure the boiler is turned off and cooled down before starting the procedure

Ignition and flame sense electrodes removed from the boiler heat exchanger access cover

Upload a photo of the removed electrodes

Deposits removed from the ignition/flame sense electrode using sandpaper

Were the electrodes cleaned satisfactorily?

If the electrodes cannot be cleaned satisfactorily, replace with new ones

Ignition/flame sense electrode replaced

Is the gasket in good condition and correctly positioned?

Sign off on the Ignition and Flame Sense Electrode Inspection

Run this procedure

Boiler Maintenance

Boiler Interior Inspection

Lift the top bezel and inspect the interior of the boiler

Vacuum any sediment from inside the boiler and components

Remove any obstructions

Expansion Tanks Inspection

Type of expansion tanks

Check if tanks provide space for water to move in and out as the heating system water expands or contracts

Boiler Water Test

Test boiler water

Run this procedure

Flame Signal Check

Warning: This procedure should be performed by trained personnel only.

Enter the flame signal shown on the display

Is the flame signal at least 10 microamps?

If the flame signal is lower, it may indicate a fouled or damaged flame sense electrode.

Did cleaning the flame sense electrode improve the signal?

Is the ground wiring in good condition?

Is the ground continuity satisfactory?

If the above steps did not improve the signal, replace the flame sense electrode.

Refer to Section 3 - Troubleshooting in the FTXL Service Manual for other procedures to deal with low flame signal.

Run this procedure

1 Monthly Fire Tube Boiler Check

Check air and vent termination screens

Check condensate drain system

Check air vents

Check magnetic separator

Sign off on the monthly fire tube boiler check

Run this procedure

6 Monthly Boiler Piping Inspect

Warning: Eliminate all system or boiler leaks. Continual fresh makeup water will reduce boiler life. Minerals can build up in sections, reducing heat transfer, overheating heat exchanger, and causing heat exchanger failure. Leaking water may also cause severe property damage.

Inspect all water and gas piping and verify to be leak free

Look for signs of leaking lines and correct any problems found

Check gas line

Sign off on the boiler piping inspection

Run this procedure
