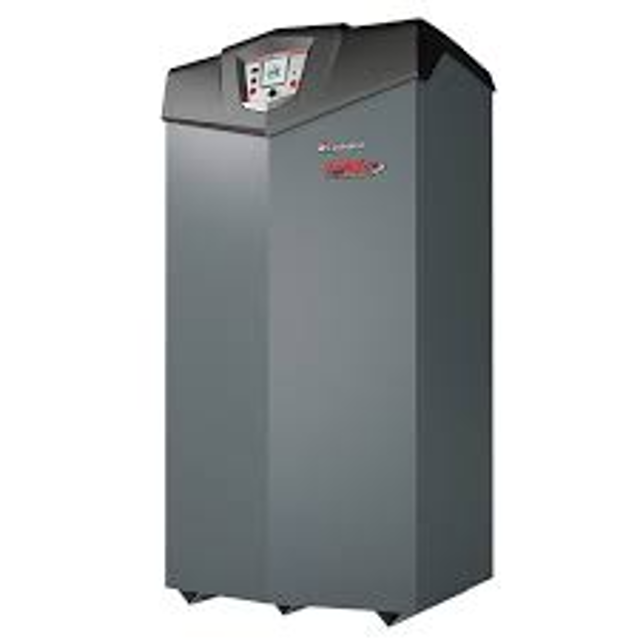

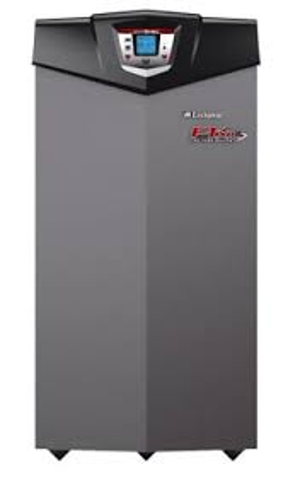

Lochinvar Fire Tube Boiler FTX500N

Warning: Failure to inspect for the above conditions and have them repaired can result in severe personal injury or death

Visually inspect the entire flue gas venting system for blockage, deterioration or leakage

Repair any joints that show signs of leakage

Verify that air inlet pipe is connected and properly sealed

Verify that boiler vent discharge and air intake are clean and free of obstructions

Sign off on the vent and fuel piping inspection

Warning: Before operating any relief valve, ensure that it is piped with its discharge in a safe area to avoid severe scald potential

Warning: Safety relief valves should be re-inspected AT LEAST ONCE EVERY THREE YEARS, by a licensed plumbing contractor or authorized inspection agency

Warning: Following installation, the valve lever must be operated AT LEAST ONCE A YEAR to ensure that waterways are clear

Warning: Before operating lever, check to see that a discharge line is connected to this valve directing the flow of hot water from the valve to a proper place of disposal

Inspect the relief valve and lift the lever to verify flow

Check if the valve and discharge line have not been altered or tampered with illegally

Check if the valve or its components are corroded

Check if the valve is inoperative due to mineral deposits

Check if the relief valve weeps or will not seat properly

Check air and vent termination screens

Sign off on the monthly fire tube boiler check

Boiler area is free of any combustible materials, gasoline and other flammable vapors and liquids

Air intake area is free of any of the contaminants listed in Section 1 of this manual

If any contaminants are present in the boiler intake air vicinity, they must be removed. If they cannot be removed, reinstall the air and vent lines

Pressure/temperature gauge reading

Sign off on the daily boiler check

Set the SMART SYSTEM control module display to Parameter Mode

Check settings of external limit controls (if any)

Sign off on the control settings check
