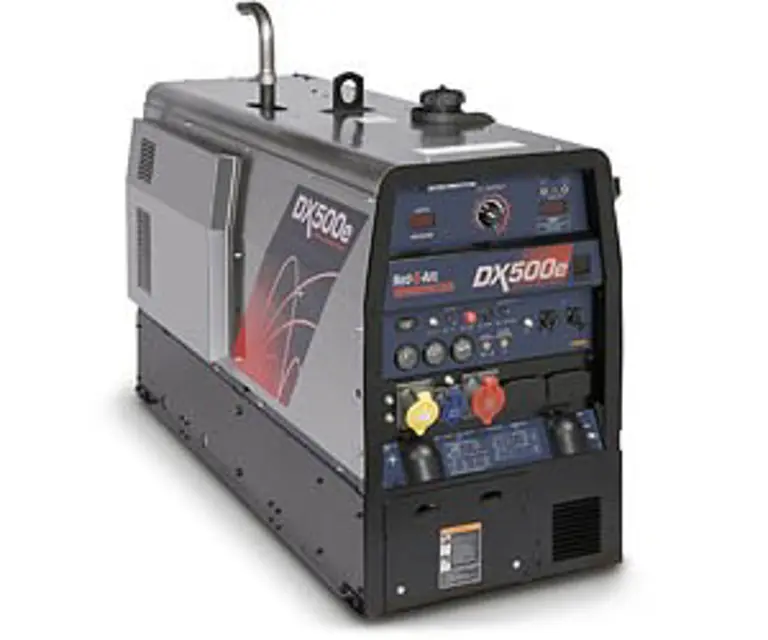

The Lincoln Electric Welder RED-D-ARC DX500e is a high-performance industrial welding machine designed for durability and efficiency. Ideal for heavy-duty applications, this welder offers advanced features and reliability, making it a preferred choice for professionals in the welding industry.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Find all the essential guides in one place.
Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more
Pre-built workflows to keep your asset running smoothly.
Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more
Integrate maintenance plans directly into your work orders.
Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more
Access the parts list for your equipment in MaintainX.
Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Lincoln Electric Welder RED-D-ARC DX500e
Create an account to install this asset package.
Integrate maintenance plans directly into your work orders in MaintainX.
Daily Service
- Inspect Coolant level
- Inspect Engine oil level
- Clean Drain water separator & fuel strainer; - Clean Air filter
- Inspect Leaks or engine damage
- Refill the fuel tank to minimize moisture condensation in the tank;
1000 Hourly Maintenance
- Replace Coolant
- Replace Alternator drive belt
- Renew the engine breather
- Tighten cylinder head
- Inspect Valve clearances
- Inspect Electrical systems
- Inspect All nuts and bolts for tightness;
12 Monthly Maintenance
- Replace Engine oil
- Replace Engine oil filter
- Replace Water separator element
- Replace Fuel filter canister
- Replace Air filter element
- Inspect Injector performance
- Inspect Battery;
Weekly Cleaning
- Blow out the generator and controls periodically with low pressure air;
6 Monthly Inspection
- Inspect Concentration of antifreeze
- Inspect Tension of alternator drive belt
- Inspect Alternator drive belt wear;
Access the parts list for your equipment in MaintainX.
Gun Receiver Bushing
K1500-1
TIG Torch
K1783-9
Magnum 300 MIG Gun
K470-2
Service Indicator Kit
K1858-1
LN-15 Across the Arc Wire Feeder
K1870-1
Gun Receiver Bushing
K1500-1
TIG Torch
K1783-9
Magnum 300 MIG Gun
K470-2
Service Indicator Kit
K1858-1
LN-15 Across the Arc Wire Feeder
K1870-1
Gun Receiver Bushing
K1500-1
TIG Torch
K1783-9
Magnum 300 MIG Gun
K470-2
Service Indicator Kit
K1858-1
LN-15 Across the Arc Wire Feeder
K1870-1
