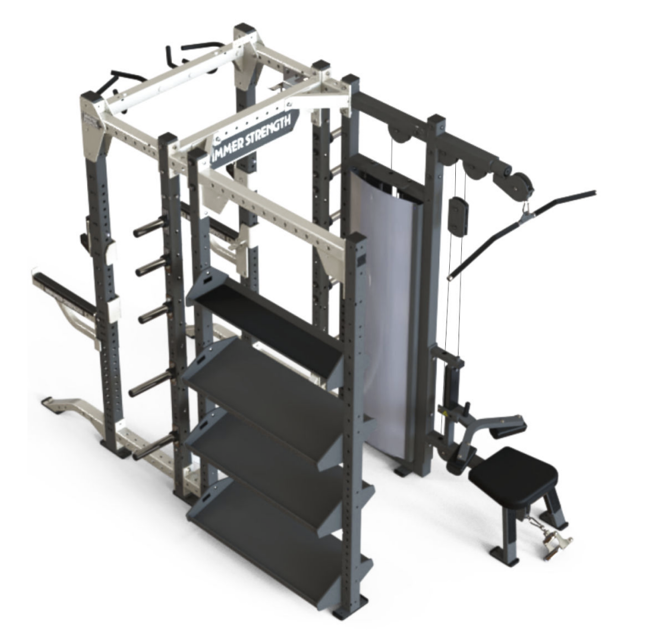

Life Fitness Gym Equipment HDU-FSS6

Safety — Safety Information — Inspection

Examine all accessories for damage or wear

Is any accessory damaged or worn?

Is any equipment damaged or has worn or broken parts?

Ensure only Life Fitness replacement parts are used

Inspect all accessories, connecting links, and carabiner clips

Check anchors and re-tighten to 30 Foot-Pounds (45Nm) if needed

Clean upholstery with an approved or compatible cleaner

Approved and Compatible Cleaners

Apply PureGreen 24 for at least 2 minutes for general disinfection

Apply PureGreen 24 for at least 10 minutes for fungus and viral control

Verify technician is Life Fitness certified

Ensure cable is threaded at least 1/2 inch (12.7mm) into termination points at headplate (A) and frame/carriage (B)

Check if model is equipped with a bayonet portal for thread engagement check

Attempt to pass a 7mm Allen wrench through the bayonet portal to check thread engagement

Tighten jam nut to 20-25 FT-LBS (27.2 - 34.0 Nm) using a 24mm wrench when proper thread engagement is reached

Check if cable tension is sufficient to keep it seated in the pulley without lifting the head plate

Loosen jam nuts and threaded plugs if head plate is lifted

Replace cable at first sign of any of the following

Was the cable replaced during inspection?

Describe any issues found during inspection

Inspect hardware on all machines

Tighten any bolts or nuts that may have loosened over the life of the product
