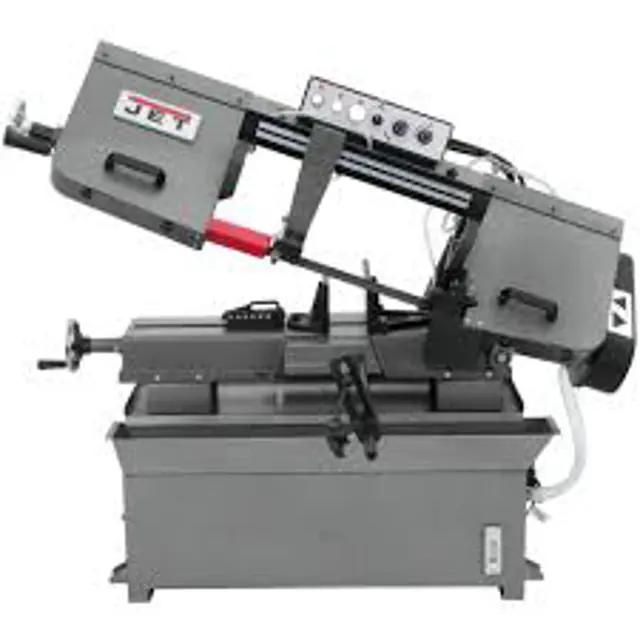

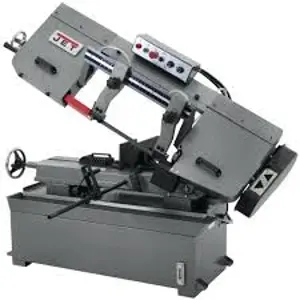

JET Four-speed Pulley Horizontal Band Saw HBS-916

Warning: Always disconnect power to machine before performing maintenance, unless indicated otherwise. Failure to comply may result in serious personal injury.

Drain and refill gear box according to Table 3 recommendations. To check gear box oil level, place bow in down position and wait a few moments for oil to settle. Check level in sight glass on side of gear casing (A, Figure 11-2). Oil level must be above red dot in middle of sight glass.

1. Disconnect machine from power source.

2. Raise bow to highest position.

3. Unscrew drain plug (Figure 11-1), and allow oil to drain completely. Follow local regulations for proper disposal of used oil.

4. Reinstall drain plug. Use pipe thread sealant on plug threads.

5. Remove fill plug (B, Figure 11-2) and insert approximately 850 mL (1/4 gal.) of Mobil® SHC Gear Oil 460, or equivalent.

Warning: Follow safety guidelines while handling cutting fluids

Enter the amount of cutting fluid poured into the chip tray

Enter the type of cutting fluid used

Refer to the cutting fluid provider’s instructions for mixing recommendations and fluid life span

Is the drain plug properly sealed?

Sign off on the cutting fluid service

Warning: Always disconnect power to machine before performing maintenance, unless indicated otherwise. Failure to comply may result in serious personal injury.

Drain and refill gear box according to Table 3 recommendations. To check gear box oil level, place bow in down position and wait a few moments for oil to settle. Check level in sight glass on side of gear casing (A, Figure 11-2). Oil level must be above red dot in middle of sight glass.

Machine disconnected from power source

Drain plug unscrewed and oil drained completely

Drain plug reinstalled with pipe thread sealant on plug threads

Amount of Mobil® SHC Gear Oil 460 inserted (in mL)

Bow lowered and oil level rechecked
