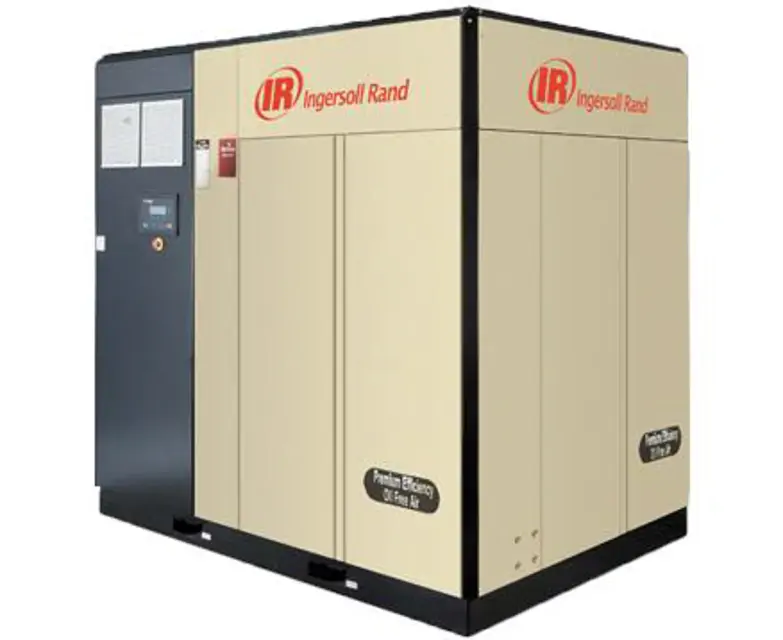

Ingersoll Rand Compressor N100H Single Stage

Inspect hoses for brittleness or damage

Drain coolant into a clean container

Cover the container to prevent contamination

Separator Element Inspection and Replacement

Check separator differential pressure via the Intellisys controller

Was the separator element replaced?

Separator Element Change Procedure

Remove all capscrews securing the cover to the tank except the screw opposite the pivot bolt

Rotate the jacking bolt clockwise until the cover lifts off the tank

Rotate the cover to allow access to inside the tank

Carefully lift out the element spacer and retain for reassembly

Carefully withdraw the used element, place it in a sealed bag and dispose of it safely

Check and replace air filter if needed

Scavenge screen - Check / clean

Remove the central nut and electrical coil

Remove screws holding bonnet of valve and split the valve

Clean and inspect all internal parts

Check and clean the following valves

List any defective parts identified

Replace defective parts as per parts manual

Ensure compressor is electrically isolated for at least 15 minutes before commencing any maintenance work

Unclip the front grill of the drive box filter

Remove the filter pad from the housing

Replace with a new filter pad from Ingersoll Rand

Replace front grill to the drive box filter
