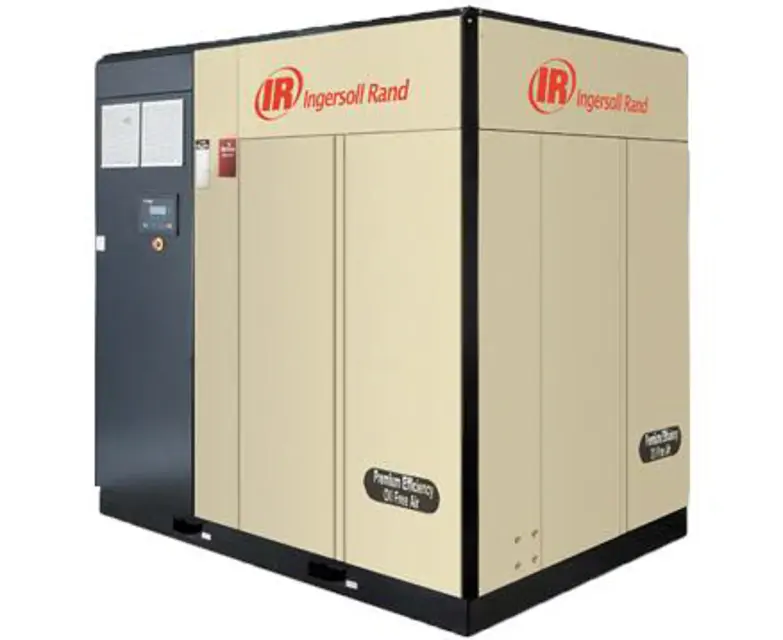

Ingersoll Rand Compressor N160K Single Stage

Check and replace air filter if needed

Scavenge screen - Check / clean

Inspect coolant hoses for brittleness or damage

Drain coolant into a clean container

Cover the container to prevent contamination

Check that all components are in place

Was the Food Grade Coolant analyzed?

Describe the results of the coolant analysis

Loosen filter element with the correct tool

Remove the element from the housing

Place the old element in a sealed bag and dispose of in a safe way

Clean the mating face of the housing

Remove the new Ingersoll Rand replacement element from its protective package

Apply a small amount of coolant to the element seal

Screw the new element down until the seal makes contact with the housing, then hand tighten a further half turn

Loosen filter element with the correct tool.

Remove the element from the housing.

Place the old element in a sealed bag and dispose of in a safe way.

Clean the mating face of the housing.

Remove the new Ingersoll Rand replacement element from its protective package.

Apply a small amount of coolant to the element seal.

Screw the new element down until the seal makes contact with the housing, then hand tighten a further half turn.
