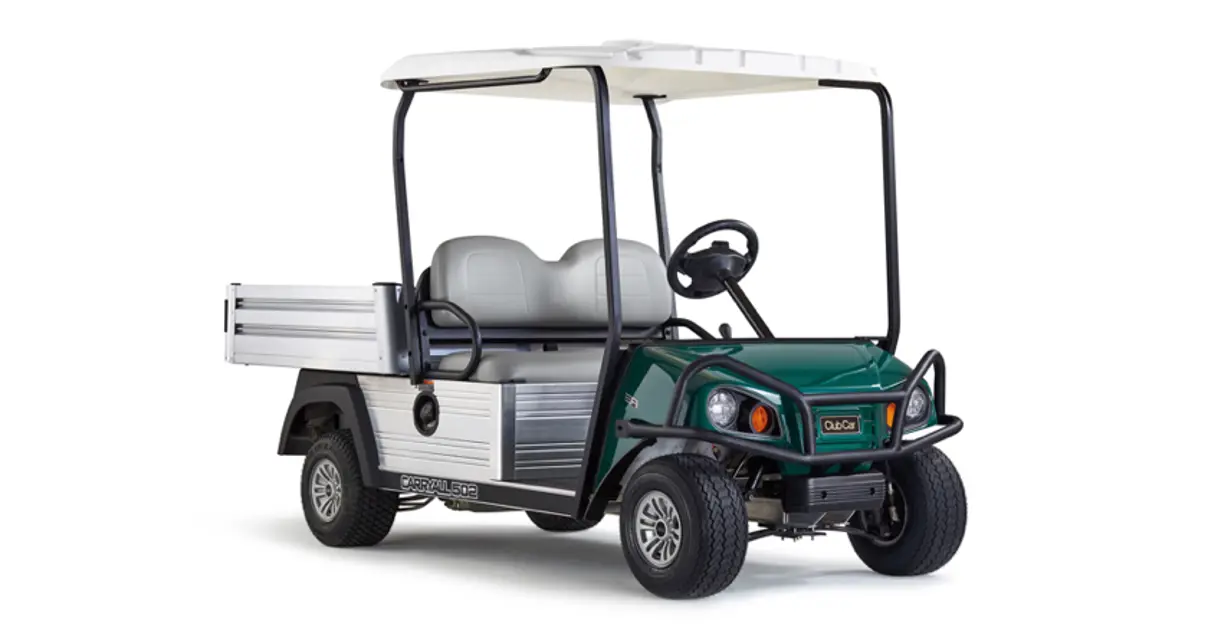

Ingersoll Rand Vehicle Carryall 2 Plus

- Electrical Vehicle - By owner

Pre-Operation and Daily Safety Checklist

Batteries - Charge batteries (after each daily use only).

Pre-Operation and Daily Safety Checklist

- Electrical Vehicle - By trained technician only

1) Check brake shoes; replace if necessary or adjust as required.

2) Lubricate brake slides per Lubrication Schedule.

3) Check brake cables for damage, replace if necessary.

4) Check brake cable equalizer adjustment, adjust if necessary.

Electrical wiring and connections - Check for tightness and damage.

Forward/Reverse switch - Check condition of contacts and wire connections; make sure connections are tight.

Front wheel alignment and camber - Check and adjust as required.

To keep batteries in good working condition, follow this maintenance program on a regular basis. Proper battery maintenance is critical not only for good performance, but also for safe operation.

• Ensure battery connections are clean and properly tightened.

• Use only 4-gauge (AWG) wires with low-resistance terminals to replace battery wires on IQ Plus models.

• If battery wire terminals are damaged or corroded, replace or clean them as necessary. Failure to do so may cause them to overheat during operation and could result in a fire, property damage, or personal injury.

1. Batteries should be kept clean and free of corrosion. Wash tops and terminals of batteries with a solution of baking soda and water (1 cup baking soda (237 mL) per 1 gallon (3.8 L) of water). Rinse solution off batteries. Do not allow this solution to enter the battery. Be sure terminals are tight. Let the terminals dry and then spray them with Battery Terminal Protector Spray (CC P/N 1014305).

NOTE: Dispose of waste water properly.

2. The electrolyte level in the batteries should be checked weekly (Figure 25). Add water only after charging unless the electrolyte level is below the top of the plates. In this case, add just enough water to cover the plates, charge and then check the level again. Never charge batteries if plates are exposed above electrolyte level. For best battery life, use only distilled water.

- Electrical Vehicle - By owner or trained technician

Batteries - Wash battery tops and clean terminals with baking soda/water solution.

Tires - Check air pressure and adjust if necessary.

General vehicle - Wash battery compartment and underside of vehicle.

- Gasoline Vehicle - By owner or trained technician

Engine - Check engine oil level, change if necessary.

1. Remove the oil level dipstick from the oil filler tube, and wipe oil off dipstick.

• Do not remove dipstick while engine is running.

Warning: Only use commercially available automotive cleaners and non-abrasive wax products.

All-aluminum rear body and cargo bed cleaned

Upload a photo of the cleaned vehicle

Warning: Do not use any type of pressure washer or steam cleaning.

Electrical components dry and undamaged

List any stains or damage found

Seats cleaned with 10% liquid soap and warm water

Upload a photo of the cleaned seats
